When it comes to installing or repairing a ceiling fan, having a good understanding of the wiring diagram is crucial. The wiring diagram serves as a guide to help you properly connect the wires and ensure that the fan operates correctly. Without a clear understanding of the wiring diagram, you may run into issues such as the fan not working properly or even causing damage to the fan or your electrical system.
Before you begin any work on your ceiling fan, it’s important to familiarize yourself with the wiring diagram provided by the manufacturer. This diagram will show you how to connect the various wires, including the fan motor, light kit, and any additional features such as a remote control. It’s also important to follow any specific instructions provided in the user manual to ensure a safe and successful installation.
Whether you’re involved in a home improvement project or fixing your automobile, having a easy-to-read wiring diagram is important. It helps you see how electrical components are linked and ensures a risk-free, efficient setup.
Whether you’re a small business owner, payroll manager, or sole proprietor, using aprintable payroll form helps ensure proper documentation. Simply get the template, print it, and fill it out by hand or edit it digitally before printing.
A wiring diagram visually represents current paths, showing the direction of power and how different parts like switches, plugs, protective devices, and terminals work together. This makes it easier to troubleshoot issues, improve installations, or install new systems without guesswork.
Ceil Fan Wiring Diagram
Many websites offer complimentary or customizable wiring diagrams templates for cars, home appliances, LED setups, and more. These diagrams are particularly helpful for hobbyists, technicians, and builders who need trustworthy references.
By using a proper wiring diagrams, you avoid faults, cut down time, and ensure all projects is up to code. Don’t start your next electrical task blindly—search for a trusted wiring diagrams and build safely today!
Easily Download and Print Ceil Fan Wiring Diagram
Simple Wiring Diagram Of Ceiling Fan CIRCUIT DIAGRAMS FREE
Top 99 6 Wire Ceiling Fan Switch Wiring Diagram Update
Hampton Bay 4 Wire Ceiling Fan Switch Wiring Diagram Shelly Lighting
Ceiling Fan Motor Wiring Diagram
How To Install And Wire A Canarm Exhaust Fan Step By Step Wiring
Ceiling Fan Wiring Diagram

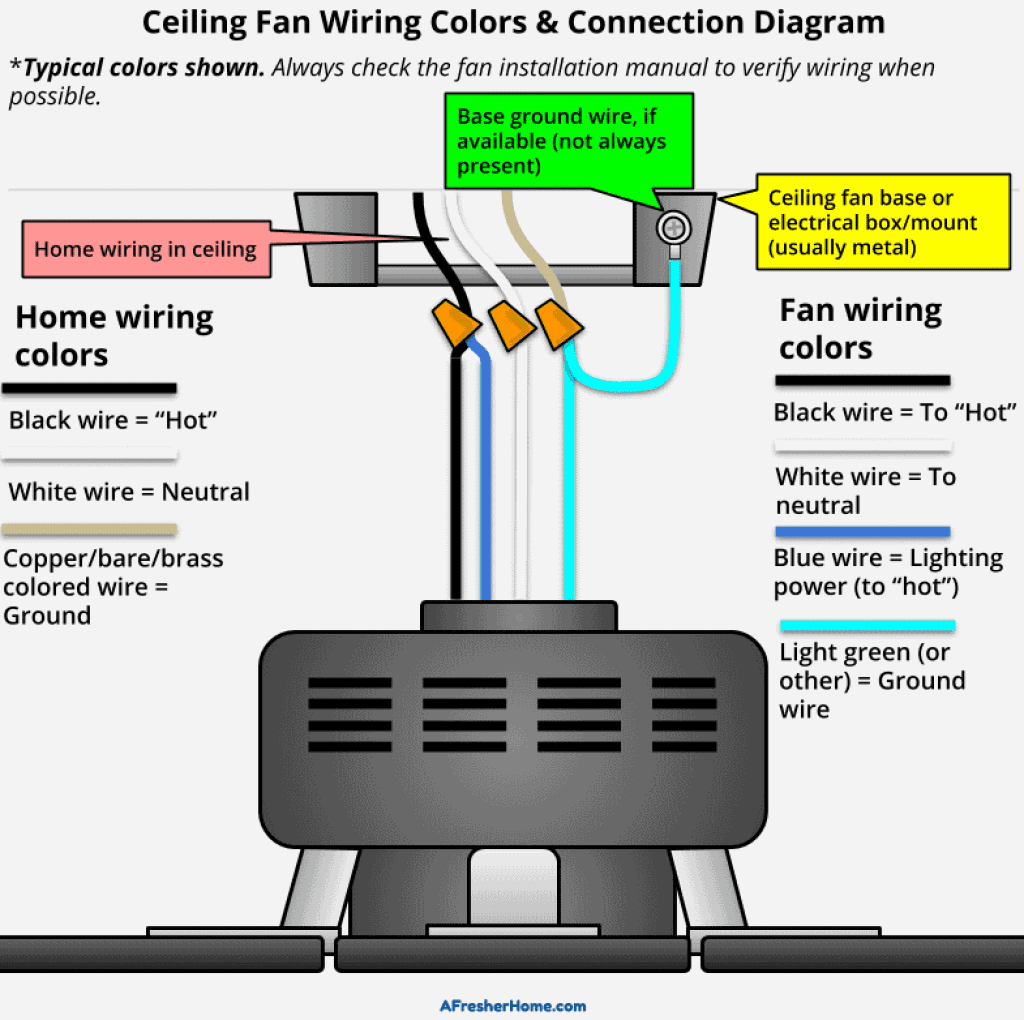

Typically, a ceiling fan wiring diagram will include color-coded wires that correspond to specific functions. For example, black wires are usually used for the fan motor, blue wires for the light kit, white wires for neutral connections, and green or bare copper wires for grounding. By following the diagram and connecting the wires correctly, you can ensure that your ceiling fan operates safely and efficiently.
One common mistake that people make when wiring a ceiling fan is not properly securing the connections with wire nuts. It’s important to twist the wires together securely before screwing on the wire nut to ensure a strong and reliable connection. Additionally, it’s a good idea to use electrical tape to further secure the wire nuts and prevent any loose connections.
Once you have completed the wiring according to the diagram, be sure to test the fan and light to ensure that everything is working properly. If you encounter any issues, double-check your connections and consult the wiring diagram to troubleshoot the problem. With the correct wiring and proper installation, your ceiling fan should provide years of comfort and functionality in your home.
In conclusion, understanding the ceiling fan wiring diagram is essential for a successful installation or repair. By following the diagram provided by the manufacturer and ensuring that all connections are secure, you can enjoy the benefits of a properly functioning ceiling fan. If you’re unsure about any aspect of the wiring process, don’t hesitate to seek professional help to ensure a safe and efficient installation.
