Installing a ceiling fan in your home can help improve air circulation and save on energy costs. However, it’s important to ensure that the wiring is done correctly to avoid any safety hazards. By following a diagram for ceiling fan wiring, you can easily install a ceiling fan in your home.

Before starting the installation process, make sure to turn off the power to the circuit where you will be installing the ceiling fan. You can do this by flipping the circuit breaker or removing the fuse that controls the circuit. This will prevent any accidents while working on the wiring.

Whether you’re involved in a DIY home upgrade or repairing your car, having a easy-to-read Diagram Ceiling Fan Wiring is crucial. It helps you visualize how wires and parts are linked and ensures a secure, smooth setup.

Whether you’re a small business owner, payroll manager, or independent contractor, using aDiagram Ceiling Fan Wiring helps ensure accurate record-keeping. Simply access the template, produce a hard copy, and complete it by hand or edit it digitally before printing.

A wiring diagram visually represents electrical circuits, showing the paths for current flow and how different modules like controls, outlets, protective devices, and connectors work together. This makes it easier to spot errors, improve installations, or install new systems without trial and error.

Many online platforms offer complimentary or editable wiring diagram templates for vehicles, household electronics, lighting systems, and more. These diagrams are particularly valuable for hobbyists, electricians, and engineers who need clear references.

By using a proper Diagram Ceiling Fan Wiring, you minimize mistakes, increase efficiency, and ensure all projects is done correctly. Don’t start your next project blindly—search for a verified wiring diagram and design with clarity today!

Get and Print Diagram Ceiling Fan Wiring

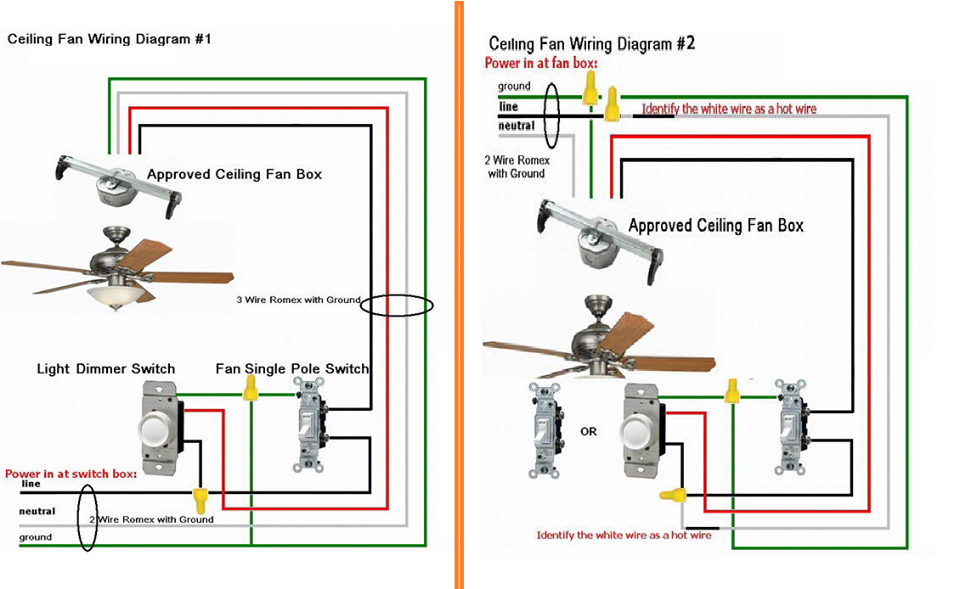

Wiring Ceiling Fan With Light

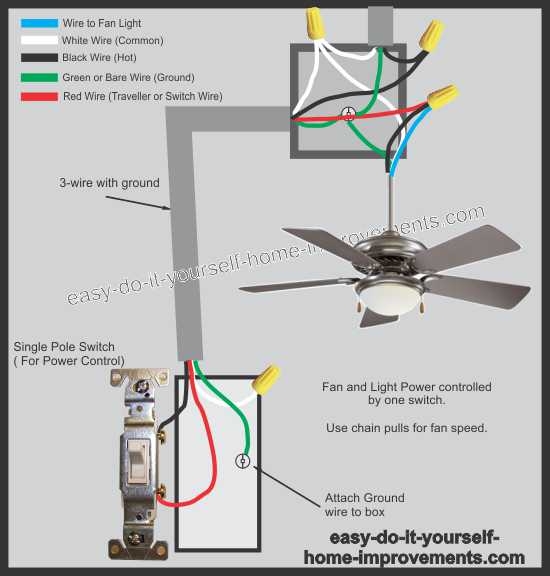

DIAGRAM 3 Way Ceiling Fan Wiring Diagram MYDIAGRAM ONLINE

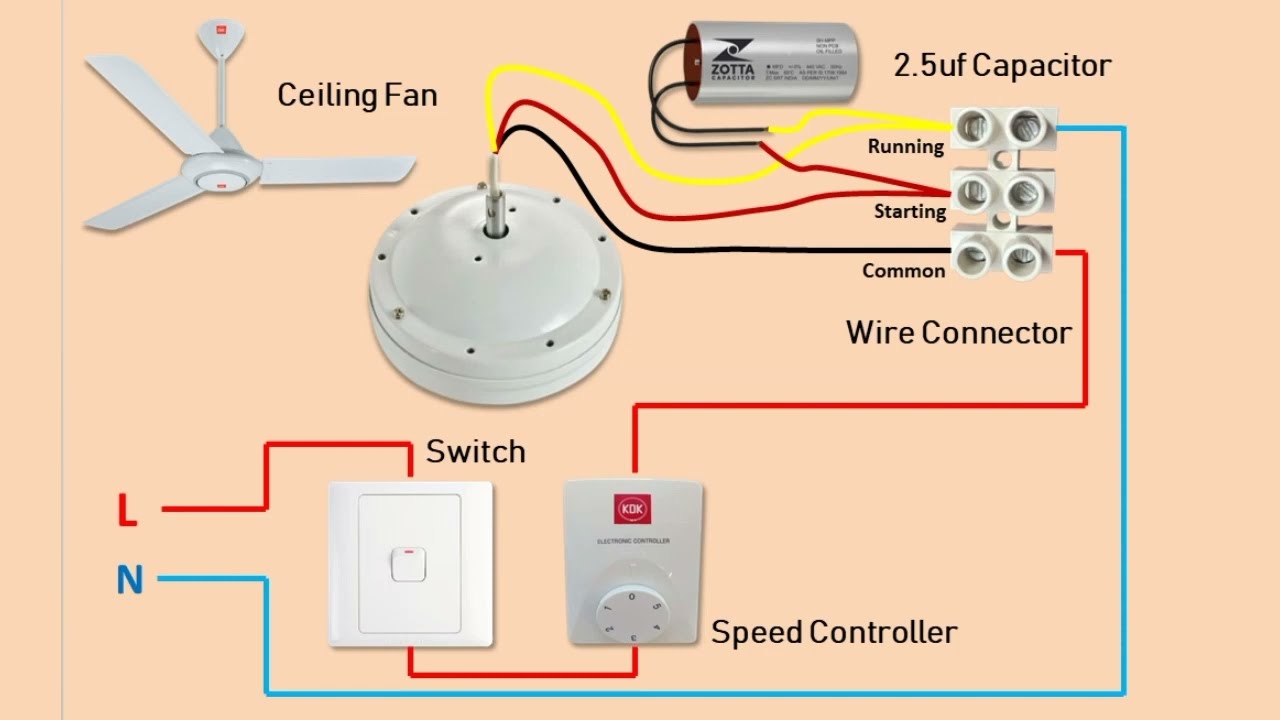

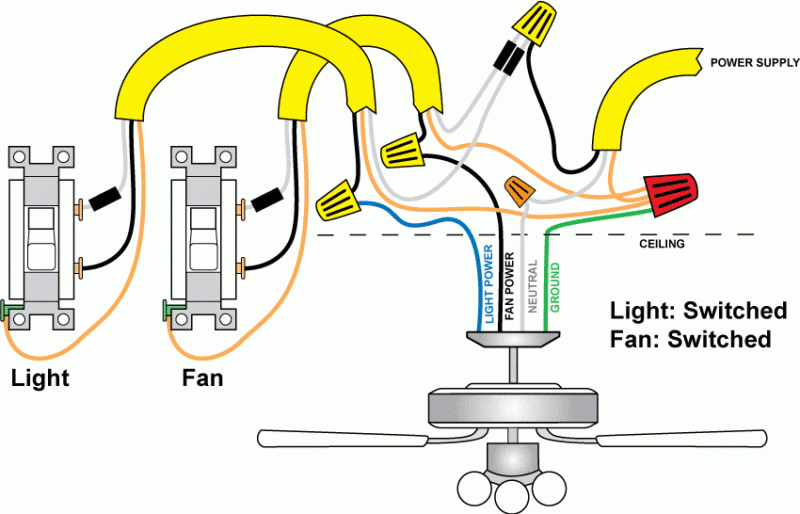

Wiring Diagram Ceiling Fan Switch

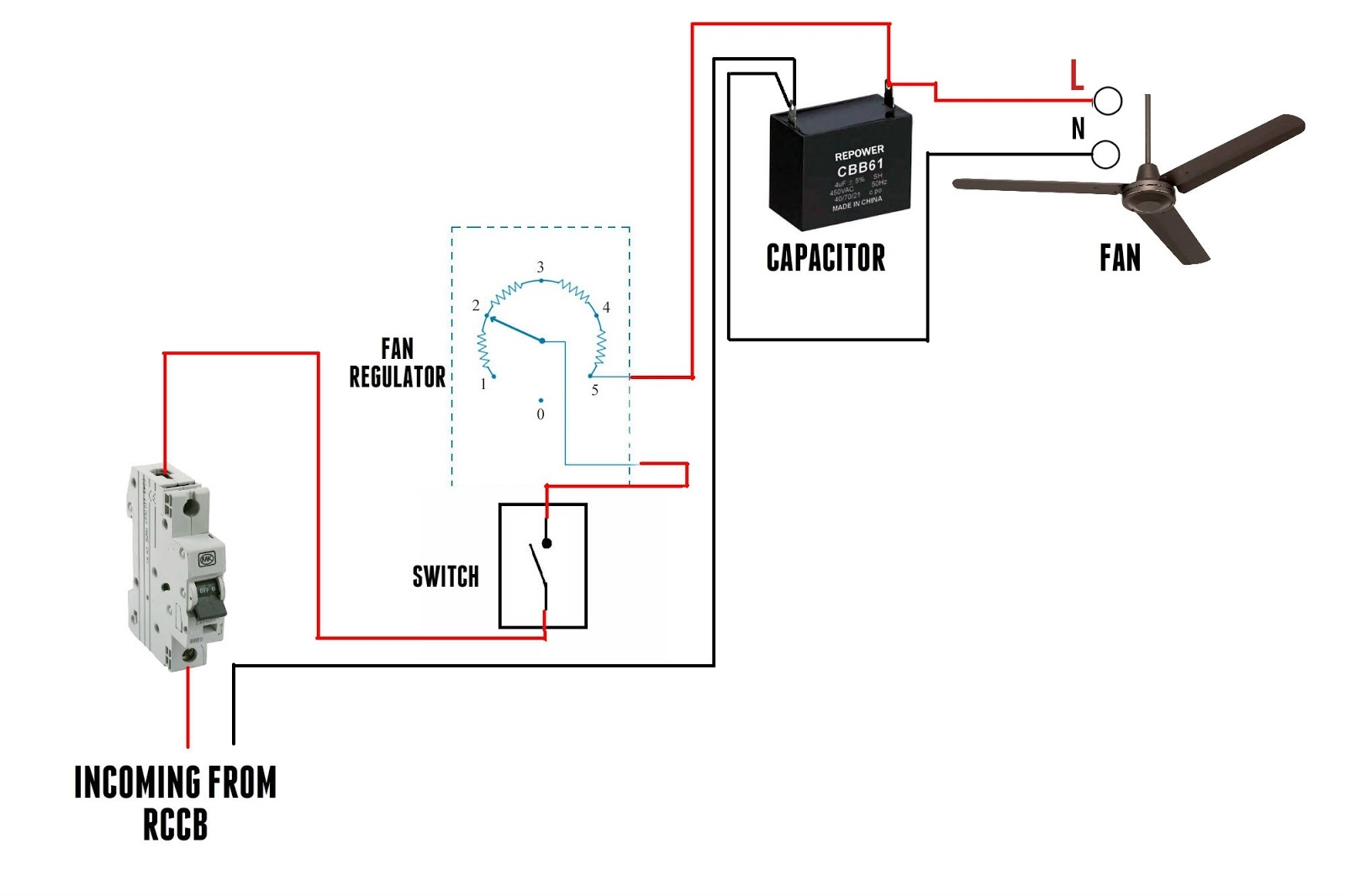

DIAGRAM Ceiling Fan Wiring Diagrams MYDIAGRAM ONLINE

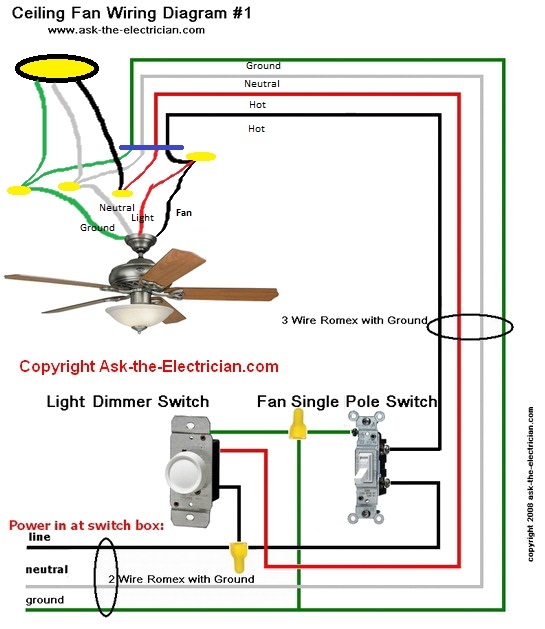

Wiring Diagram For Ceiling Fan With A Light

First, you will need to identify the wires in your ceiling. Typically, you will have a black wire (hot), a white wire (neutral), and a green or bare copper wire (ground). The black wire is the live wire that carries electricity, the white wire is the return path for the electricity, and the green or bare copper wire is the ground wire that provides a path for fault currents.

Next, refer to the diagram for ceiling fan wiring that came with your ceiling fan. This diagram will show you how to connect the wires from the ceiling to the wires on the ceiling fan. Typically, you will connect the black wire from the ceiling to the black wire on the ceiling fan, the white wire to the white wire, and the green or bare copper wire to the green wire on the fan.

Once you have connected the wires, secure them with wire nuts to ensure they are tightly connected. Then, carefully tuck the wires into the ceiling box and mount the ceiling fan according to the manufacturer’s instructions. Finally, turn the power back on and test the ceiling fan to make sure it is working properly.

In conclusion, following a diagram for ceiling fan wiring is essential for a safe and successful installation. By taking the time to understand the wiring and following the instructions carefully, you can enjoy the benefits of a ceiling fan in your home. Remember to always prioritize safety and consult a professional if you are unsure about any part of the installation process.
