Diagram For Speaker Wiring
When setting up a speaker system, understanding the wiring is essential to ensure optimal sound quality. Properly wiring your speakers can make a significant difference in how they perform and how well they work together. One way to visualize the wiring process is by using a diagram, which can help you see the connections more clearly.
Whether you are setting up a new speaker system or troubleshooting an existing one, having a diagram for speaker wiring can be incredibly helpful. It can serve as a guide to ensure that you are connecting the speakers correctly and can help you identify any potential issues that may be affecting the sound quality.
Whether you’re working on a house renovation or repairing your car, having a clear and accurate wiring diagram is crucial. It helps you understand how electrical components are wired and ensures a safe, efficient setup.
Whether you’re a startup founder, HR professional, or independent contractor, using apayroll template helps ensure proper documentation. Simply access the template, produce a hard copy, and fill it out by hand or edit it digitally before printing.
A wiring diagram visually represents current paths, showing the flow of electricity and how different parts like controls, plugs, protective devices, and terminals are linked. This makes it easier to spot errors, improve installations, or install new systems without trial and error.
Diagram For Speaker Wiring
Many websites offer free or tailored electrical schematic templates for vehicles, household electronics, LED setups, and more. These diagrams are particularly valuable for DIY enthusiasts, electricians, and builders who need clear references.
By using a proper wiringdiagram, you minimize mistakes, save time, and ensure all electrical work is done correctly. Don’t start your next electrical task blindly—search for a professional wiring diagrams and design with clarity today!
Quickly Access and Print Diagram For Speaker Wiring

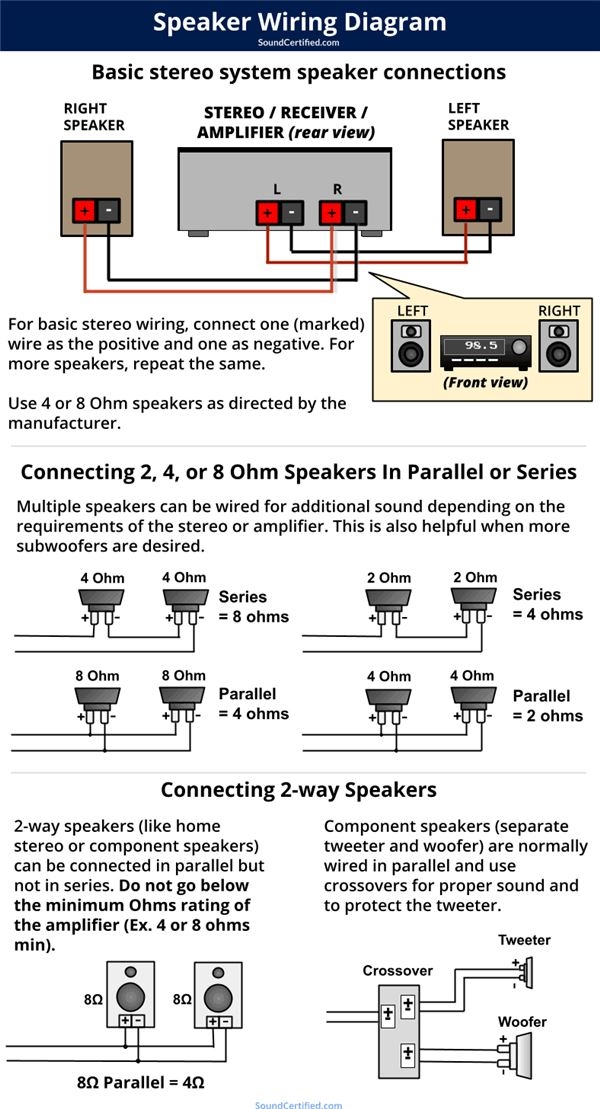

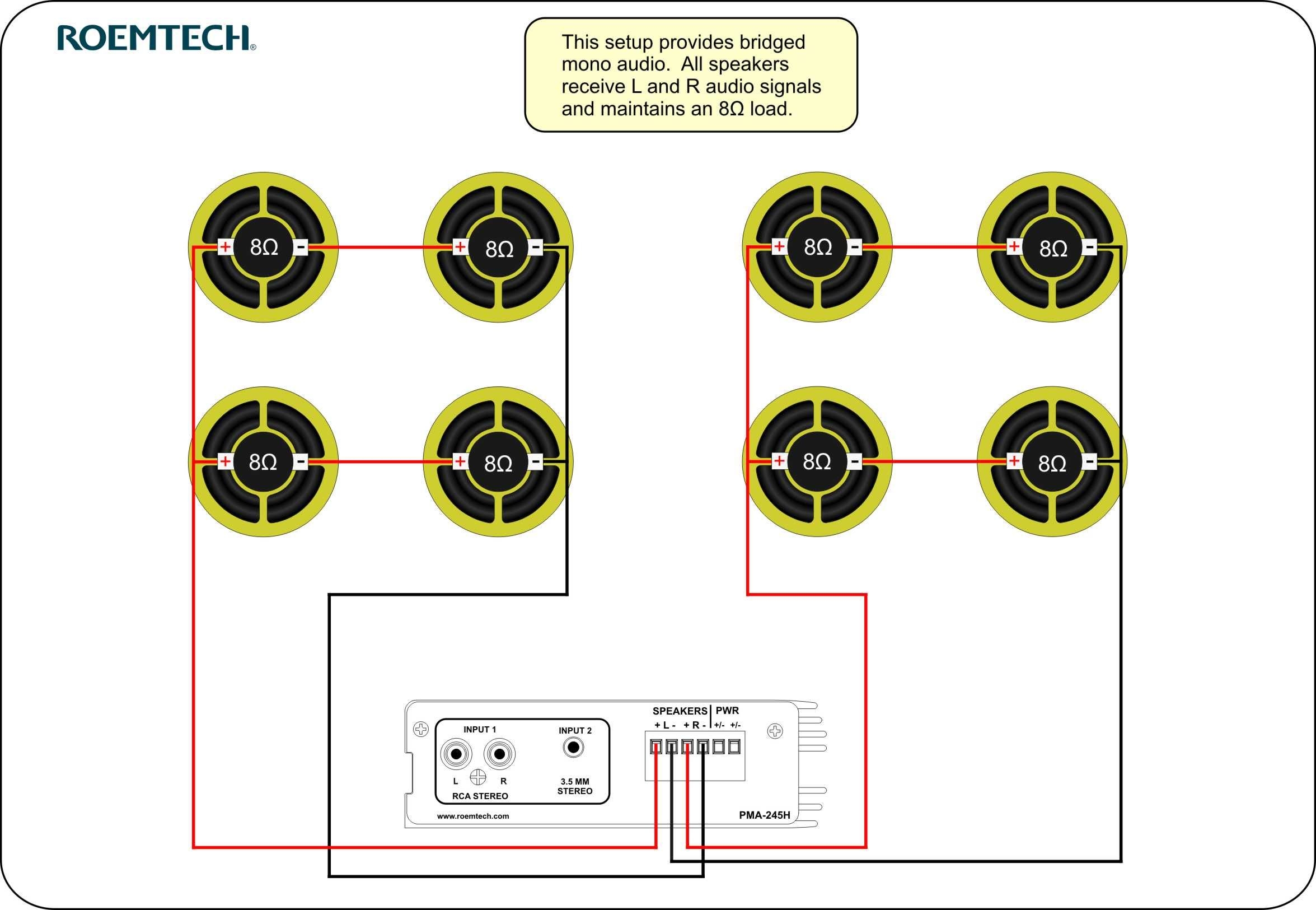

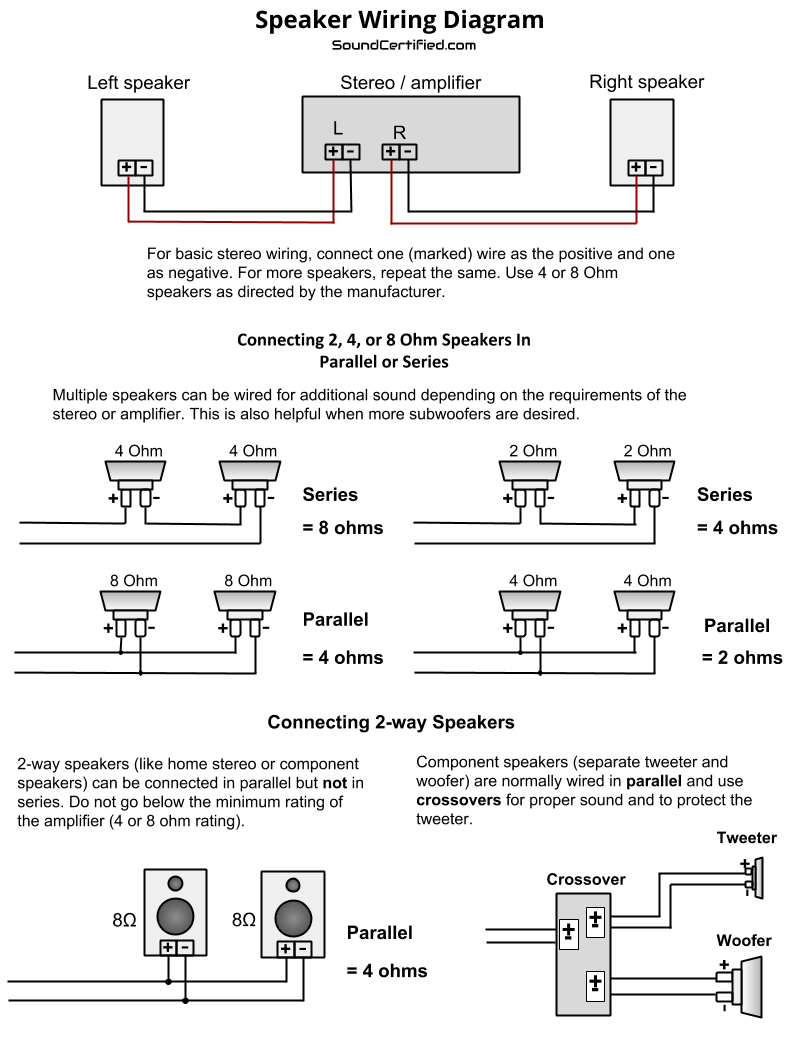

4 Way Speaker Wiring Diagram Bestn

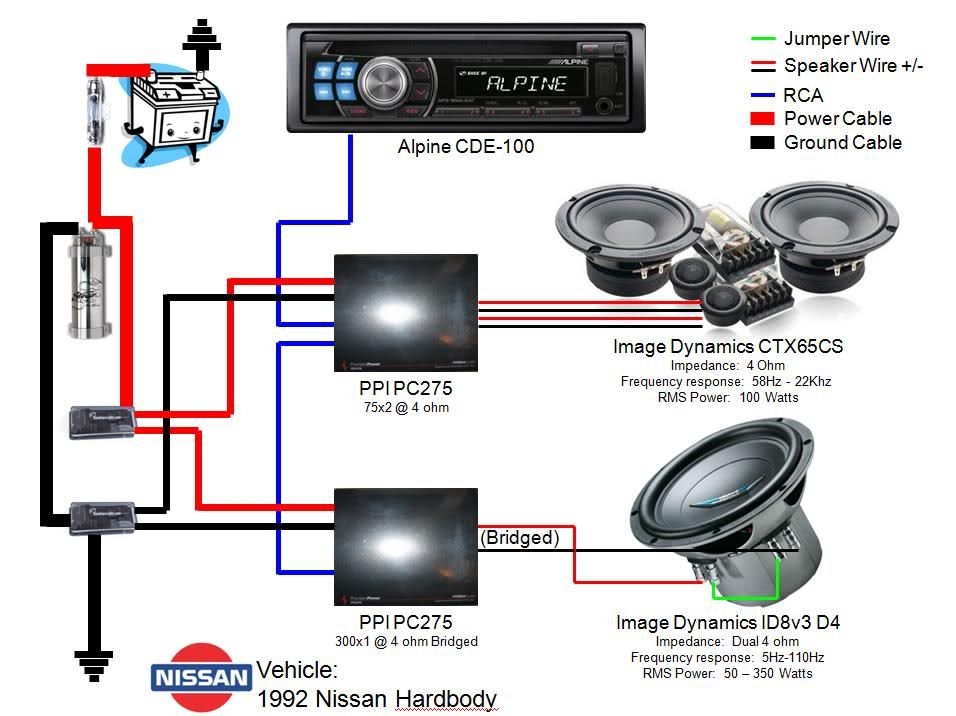

Speaker Crossover Wiring Diagram Wiring Diagram
2 Way Speaker Wiring Diagram
Speaker Tweeter Wiring Diagram Easy Wiring

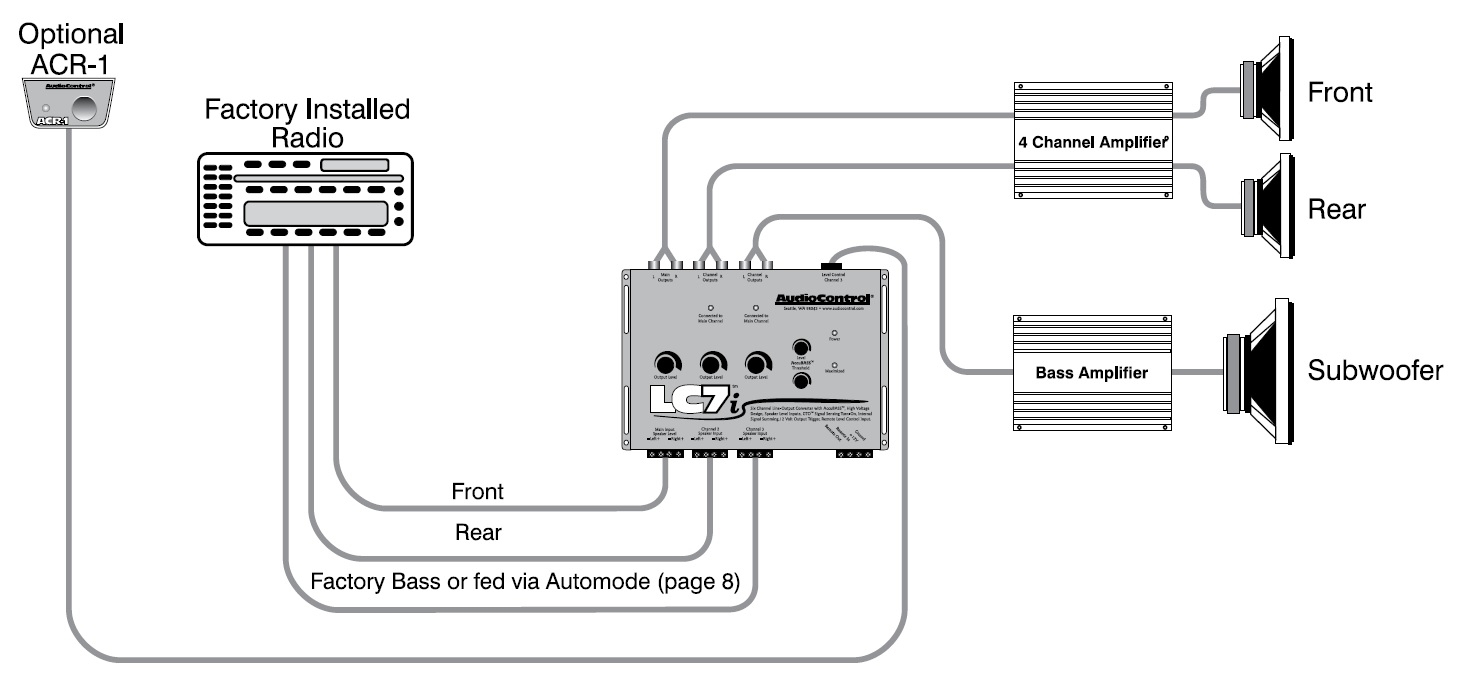

Home Speaker Wiring Diagram Wiring Diagram
Diagram For Speaker Wiring
There are a few different ways to wire speakers depending on the setup of your system. One common method is to use a series-parallel wiring configuration, which involves connecting multiple speakers in a series and parallel combination. This type of wiring can help ensure that the impedance of the speakers matches the output of the amplifier, resulting in better sound quality.
Another option is to use a bi-wiring setup, where each speaker is connected to the amplifier using two separate cables. This can help reduce interference and improve the overall clarity of the sound. By using a diagram for speaker wiring, you can easily see how to set up this type of configuration and ensure that each speaker is connected correctly.
It is important to note that not all speakers are wired the same way, so it is essential to refer to the manufacturer’s instructions when setting up your system. By using a diagram for speaker wiring, you can double-check that you are connecting everything correctly and avoid any potential damage to your equipment.
In conclusion, having a diagram for speaker wiring can be a valuable tool when setting up your speaker system. It can help you visualize the connections more clearly and ensure that everything is wired correctly. By following the diagram and referring to the manufacturer’s instructions, you can set up your speakers for optimal performance and enjoy high-quality sound.
