Dual Voice Coil Subwoofer Wiring Diagram
When it comes to setting up your car audio system, having a subwoofer can make a huge difference in the quality of sound. Dual voice coil subwoofers are a popular choice for car audio enthusiasts due to their flexibility in wiring options and the ability to provide powerful bass response.
Understanding how to wire a dual voice coil subwoofer can be a bit confusing for beginners, but with the right diagram and knowledge, it can be done easily. By following the correct wiring setup, you can ensure that your subwoofer operates efficiently and delivers the best possible sound quality.
Whether you’re handling a home improvement project or fixing your automobile, having a well-drawn and reliable wiring diagrams is crucial. It helps you see how electrical components are wired and ensures a secure, organized setup.
Whether you’re a small business owner, payroll manager, or independent contractor, using aprintable payroll form helps ensure compliance with regulations. Simply get the template, produce a hard copy, and fill it out by hand or edit it digitally before printing.
A Dual Voice Coil Subwoofer Wiring Diagram visually represents current paths, showing the flow of electricity and how different components like controls, plugs, protective devices, and connectors are linked. This makes it easier to identify problems, make upgrades, or set up circuits without confusion.
Dual Voice Coil Subwoofer Wiring Diagram
Many online platforms offer complimentary or tailored Dual Voice Coil Subwoofer Wiring Diagram templates for cars, household electronics, lighting systems, and more. These diagrams are particularly helpful for hobbyists, technicians, and builders who need reliable references.
By using a proper wiring diagram, you minimize mistakes, save time, and ensure all projects is up to code. Don’t start your next electrical task blindly—search for a professional wiring diagrams and design with clarity today!
Easily Download and Print Dual Voice Coil Subwoofer Wiring Diagram
Wiring Dual Coil Subwoofer In Series
Dual Voice Coil Subwoofer Wiring Diagrams Uploadism
Subwoofer Wiring Diagrams How To Wire Your Subs Subwoofer Wiring
A Comprehensive Guide To Dual Voice Coil Subwoofer Wiring
Dual Voice Coil Subwoofer Wiring Diagram Easy Wiring
One common way to wire a dual voice coil subwoofer is to connect both voice coils in parallel. This means connecting the positive terminal of one voice coil to the positive terminal of the other voice coil, and doing the same for the negative terminals. This wiring configuration will result in a lower impedance, allowing your subwoofer to draw more power from your amplifier and produce louder bass.

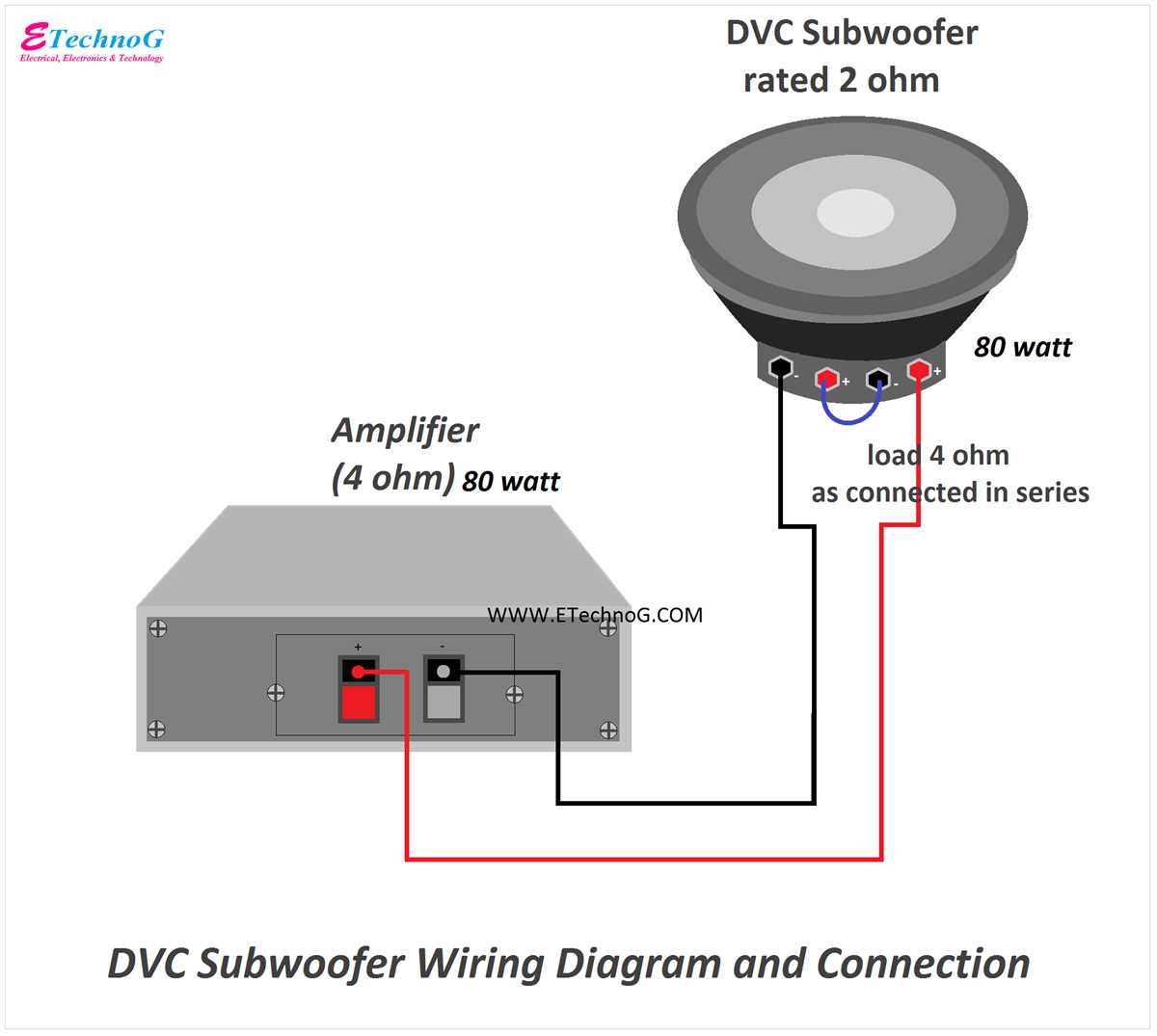

Another wiring option for dual voice coil subwoofers is to wire the voice coils in series. In this setup, you would connect the positive terminal of one voice coil to the negative terminal of the other voice coil. The remaining positive and negative terminals would then be connected to your amplifier. Wiring in series will result in a higher impedance, which can be useful if you want to match the impedance of your subwoofer to your amplifier.
It’s important to note that when wiring a dual voice coil subwoofer, you should refer to the manufacturer’s specifications to ensure you are using the correct wiring setup for your particular subwoofer model. Using the wrong wiring configuration can result in poor sound quality, overheating, or even damage to your equipment.
In conclusion, understanding how to wire a dual voice coil subwoofer is essential for getting the most out of your car audio system. By following the correct wiring diagram and configuration, you can ensure that your subwoofer delivers powerful bass response and enhances your overall listening experience.
