When it comes to installing a new sound system in your vehicle, understanding the wiring diagram is crucial. One common setup is the Dual Voice Coil (DVC) subwoofer, which offers more flexibility in wiring options. By following a proper wiring diagram, you can ensure that your subwoofer system functions efficiently and delivers the best possible sound quality.
Before diving into the wiring process, it’s important to have a clear understanding of how a DVC subwoofer works. Unlike a single voice coil subwoofer, a DVC subwoofer has two separate voice coils, each with its own set of terminals. This design allows for different wiring configurations, giving you more control over the impedance and power handling of the subwoofer.
Whether you’re involved in a home improvement project or maintaining your car, having a well-drawn and reliable wiring diagrams is essential. It helps you understand how circuit elements are linked and ensures a safe, organized setup.
Whether you’re a small business owner, payroll manager, or sole proprietor, using aprintable payroll helps ensure accurate record-keeping. Simply download the template, produce a hard copy, and complete it by hand or edit it digitally before printing.
A wiring diagrams visually represents wiring systems, showing the flow of electricity and how different components like switches, plugs, fuses, and connectors are linked. This makes it easier to spot errors, improve installations, or install new systems without guesswork.
Dvc Wiring Diagram
Many resources offer complimentary or editable Dvc Wiring Diagram templates for vehicles, home appliances, lighting systems, and more. These diagrams are particularly helpful for hobbyists, technicians, and builders who need clear references.
By using a proper electrical Schematic, you avoid faults, cut down time, and ensure all circuit modifications is up to code. Don’t start your next repair blindly—search for a verified Dvc Wiring Diagram and build safely today!
Easily Download and Print Dvc Wiring Diagram

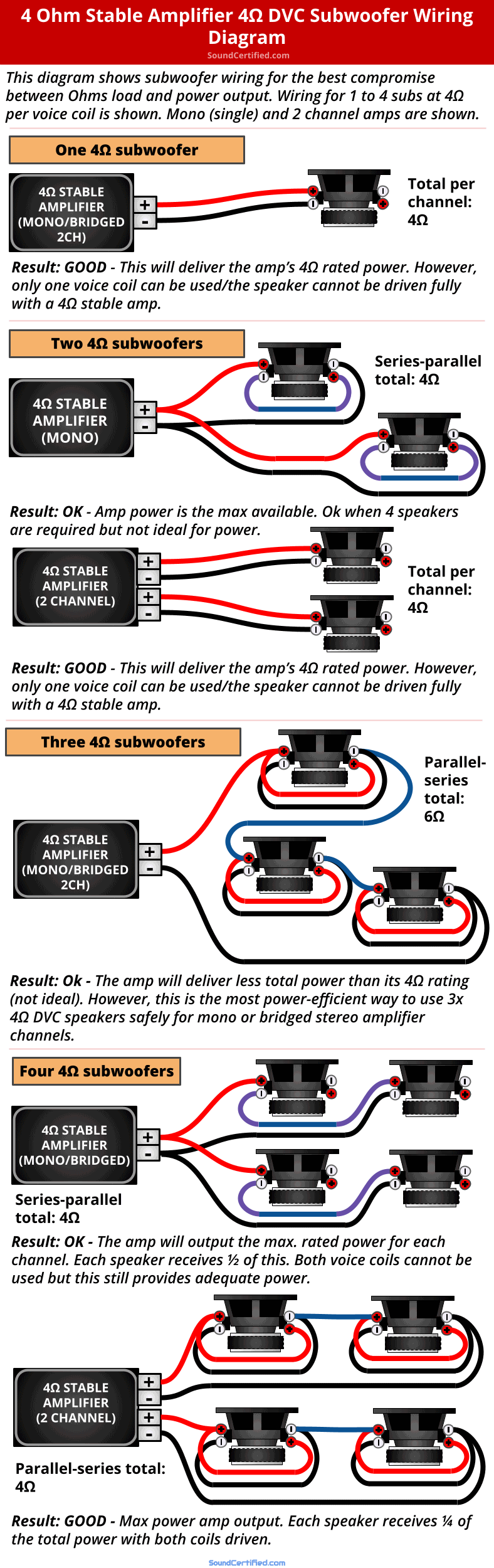

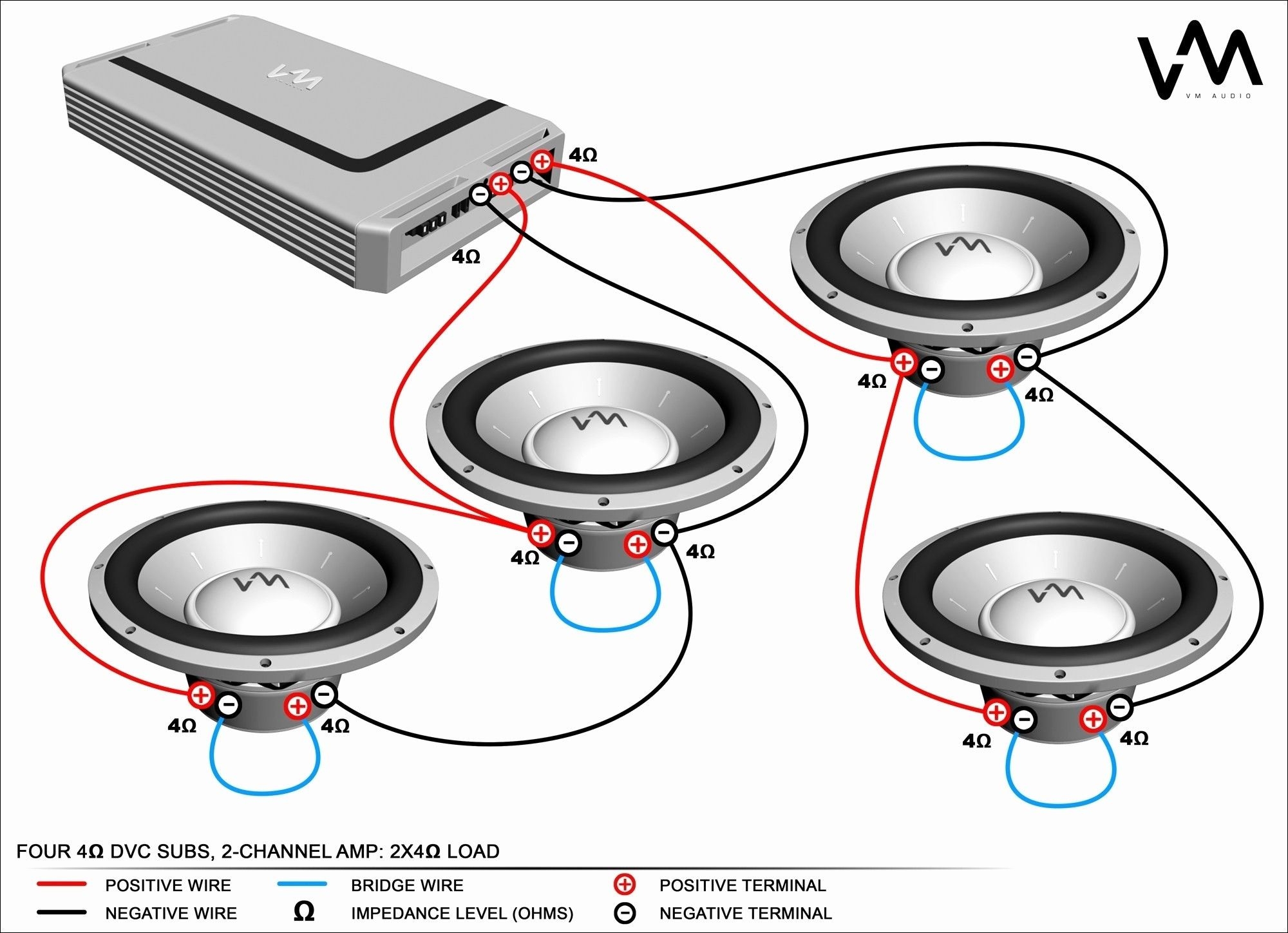

4 Ohm Dvc Wiring Options
Dvc Subwoofer Wiring Diagram

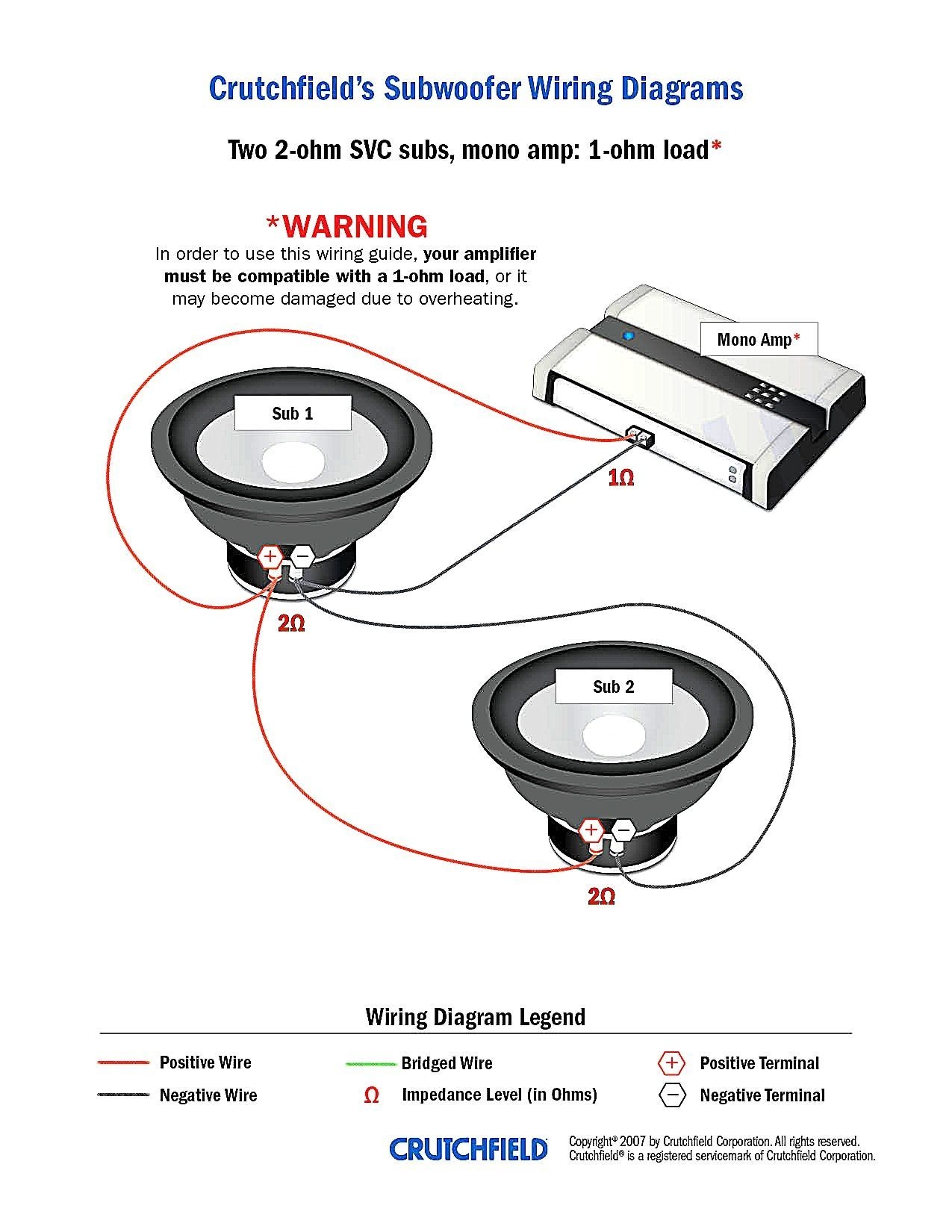

Single 2 Ohm Dvc Wiring Diagram

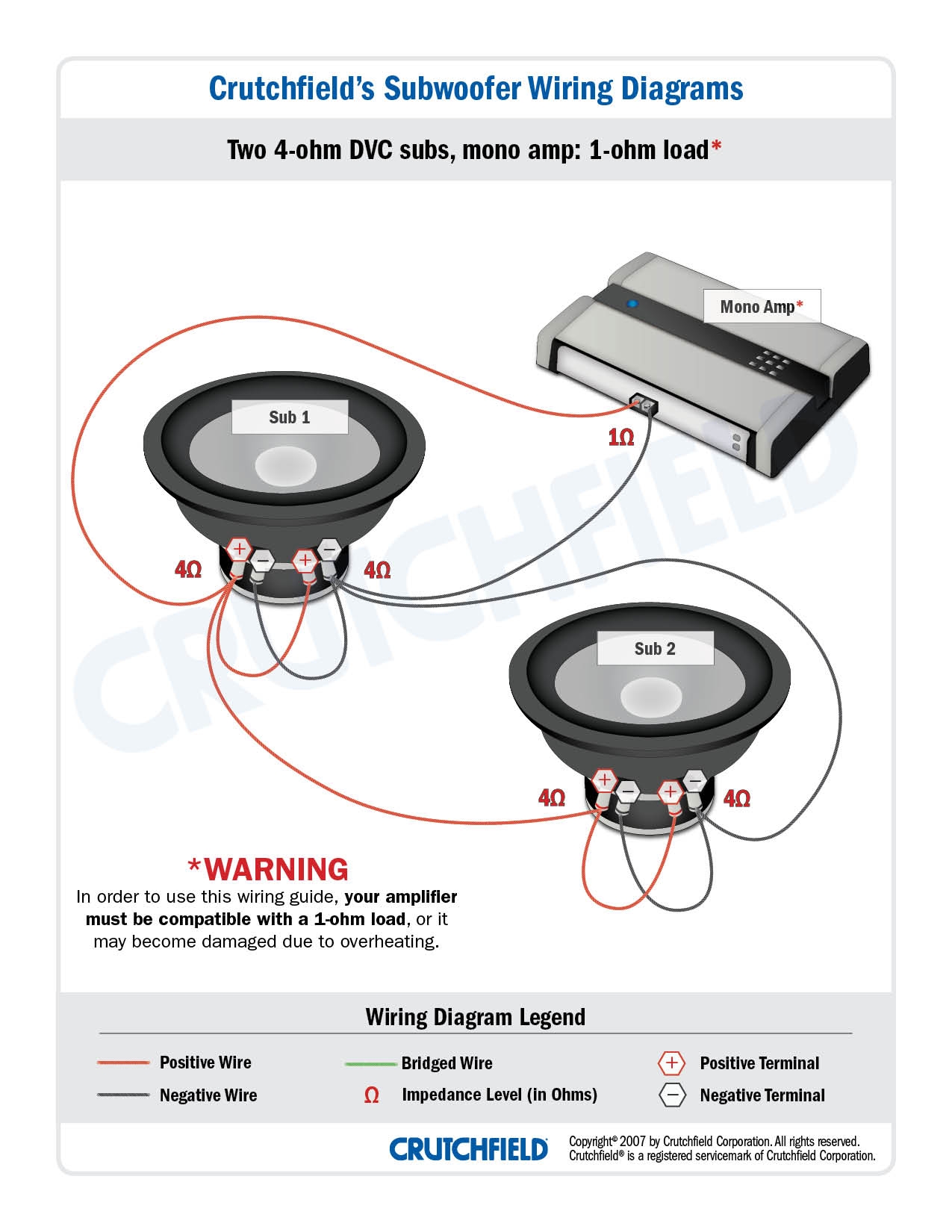

4 Ohm Dvc Wiring Diagram
Dvc 2 Ohm Wiring Diagram Wiring Diagram
When wiring a DVC subwoofer, there are a few key factors to consider. First, you need to determine the impedance of your subwoofer – typically either 2 ohms or 4 ohms per voice coil. This will affect how you wire the subwoofer to your amplifier and ultimately impact the overall performance of your sound system. Additionally, you’ll need to decide whether you want to wire the subwoofer in series or parallel, as each configuration has its own advantages and drawbacks.
One common wiring option for a DVC subwoofer is to wire each voice coil in parallel, resulting in a 1 ohm load. This setup allows for maximum power transfer from the amplifier to the subwoofer, resulting in louder and clearer bass. Alternatively, you can wire the voice coils in series to create a 4 ohm load, which may be preferred if your amplifier is not stable at lower impedance levels.
Ultimately, the wiring diagram you choose will depend on your specific setup and preferences. It’s important to carefully read the specifications of your subwoofer and amplifier to ensure compatibility and optimal performance. By following a detailed wiring diagram and taking the time to properly wire your DVC subwoofer, you can enjoy a powerful and precise sound system in your vehicle.
In conclusion, understanding the wiring diagram for a DVC subwoofer is essential for achieving the best possible sound quality in your vehicle. By considering factors such as impedance, wiring configurations, and amplifier compatibility, you can create a sound system that meets your needs and preferences. With the right knowledge and attention to detail, you can confidently wire your DVC subwoofer and enjoy exceptional bass performance on the road.
