Electrical wiring diagrams are essential tools for understanding the electrical systems in buildings, vehicles, and machinery. They provide a visual representation of the components and connections within a system, helping technicians and electricians troubleshoot and repair electrical issues effectively. However, reading these diagrams can be overwhelming for those who are not familiar with electrical terminology and symbols.
By following some basic guidelines and understanding common symbols used in electrical wiring diagrams, you can decipher these diagrams and gain valuable insights into the electrical systems you are working with.
Whether you’re handling a home improvement project or maintaining your car, having a well-drawn and reliable wiringdiagram is crucial. It helps you visualize how wires and parts are linked and ensures a risk-free, efficient setup.
Whether you’re a startup founder, administrator, or independent contractor, using aprintable payroll form helps ensure proper documentation. Simply get the template, produce a hard copy, and fill it out by hand or edit it digitally before printing.
A wiringdiagram visually represents current paths, showing the flow of electricity and how different components like controls, outlets, protective devices, and terminals are linked. This makes it easier to spot errors, improve installations, or add components without trial and error.
How To Read Electrical Wiring Diagram
Many online platforms offer complimentary or editable wiring diagrams templates for vehicles, household electronics, lighting systems, and more. These diagrams are particularly helpful for hobbyists, electricians, and engineers who need trustworthy references.
By using a proper How To Read Electrical Wiring Diagram, you avoid faults, cut down time, and ensure all projects is up to code. Don’t start your next project blindly—search for a verified electrical Schematic and design with clarity today!
Get and Print How To Read Electrical Wiring Diagram
How To Read Circuit Diagrams For Beginners Understanding Electrical

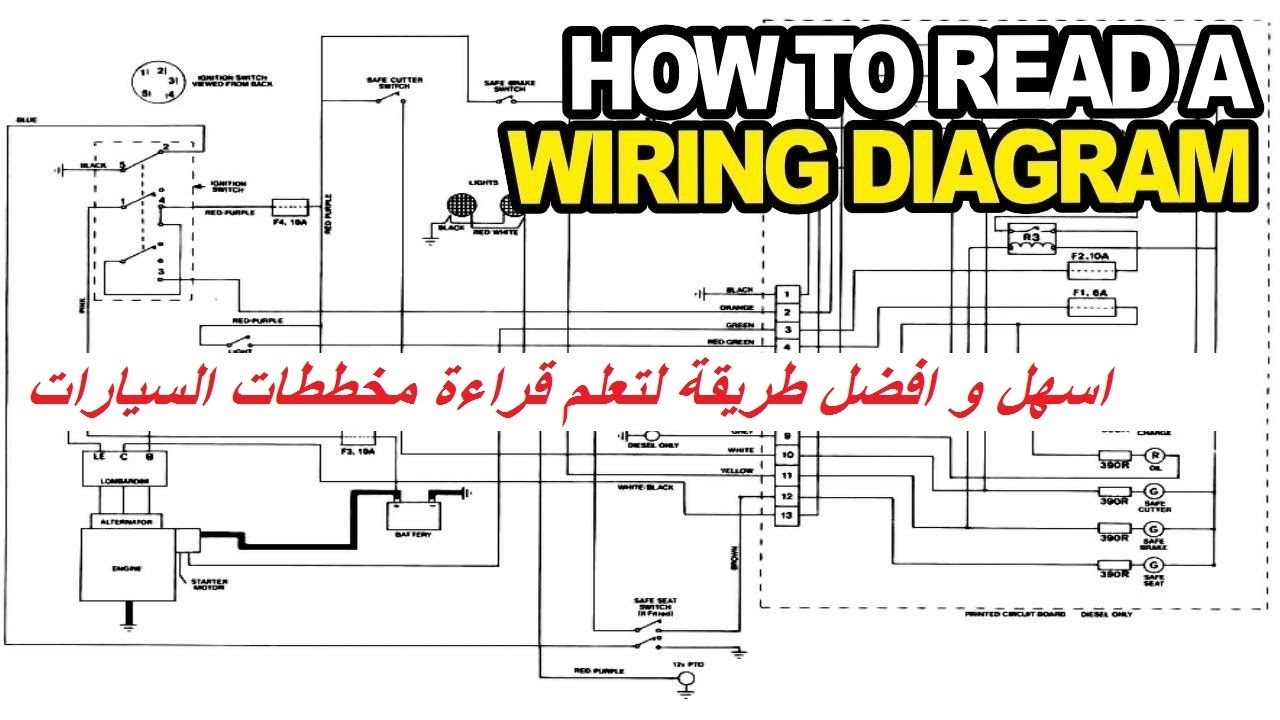

How To Read Auto Electrical Wiring Diagrams

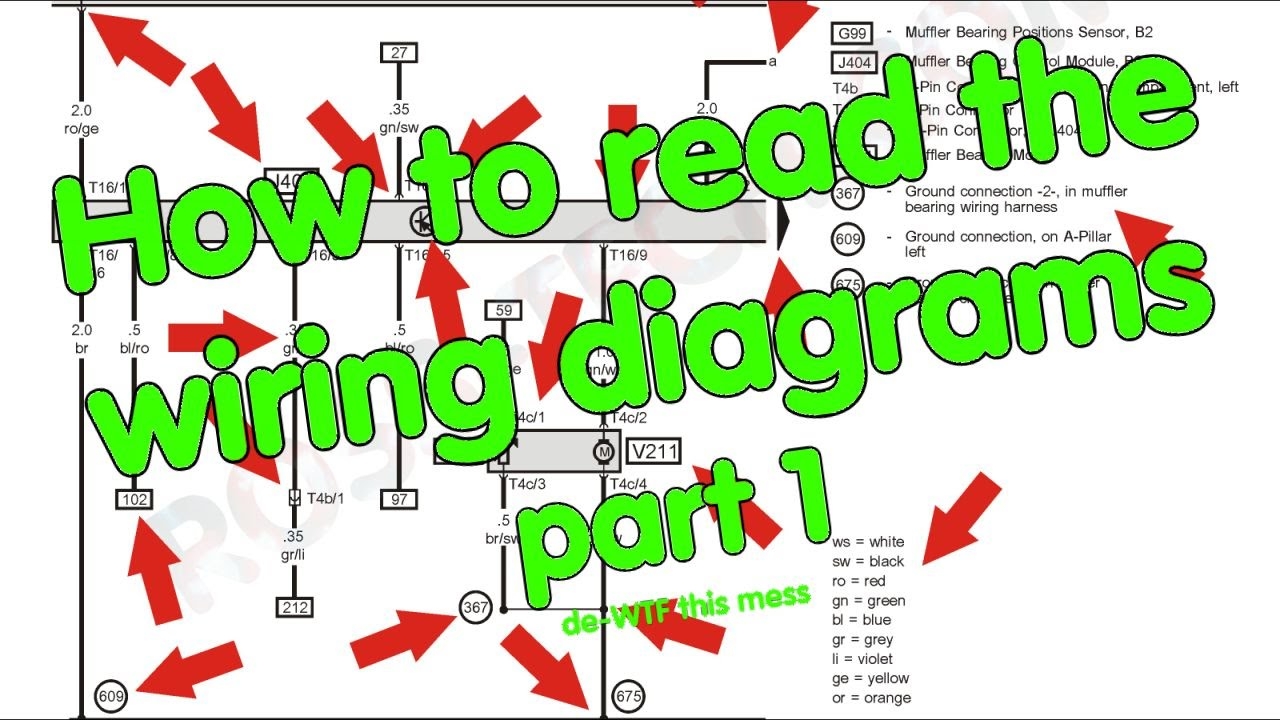

How To Read Electrical Wiring Diagram Pdf
How To Read Electrical Wiring Diagram Pdf
DIAGRAM Ducati Electrical Wiring Diagrams MYDIAGRAM ONLINE
1. Identify the components: The first step in reading an electrical wiring diagram is to identify the key components within the system. This includes switches, relays, motors, lights, and other electrical devices. Look for labels and symbols that represent each component and understand how they are connected within the diagram.

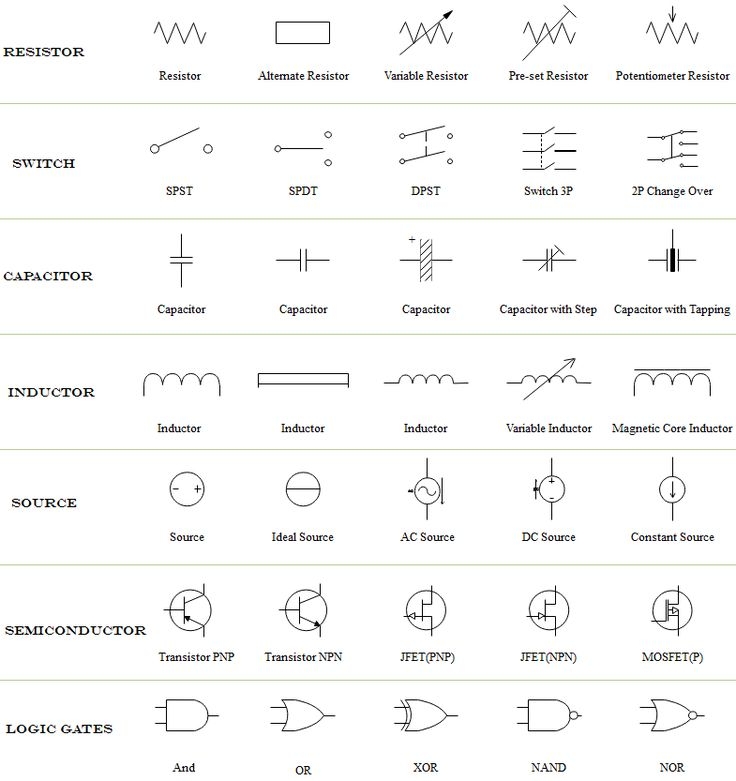

2. Understand the symbols: Electrical wiring diagrams use standardized symbols to represent different components and connections. Familiarize yourself with common symbols such as lines, circles, squares, and triangles, which represent wires, connections, switches, and other components. Refer to a legend or key if you are unsure of any symbol’s meaning.

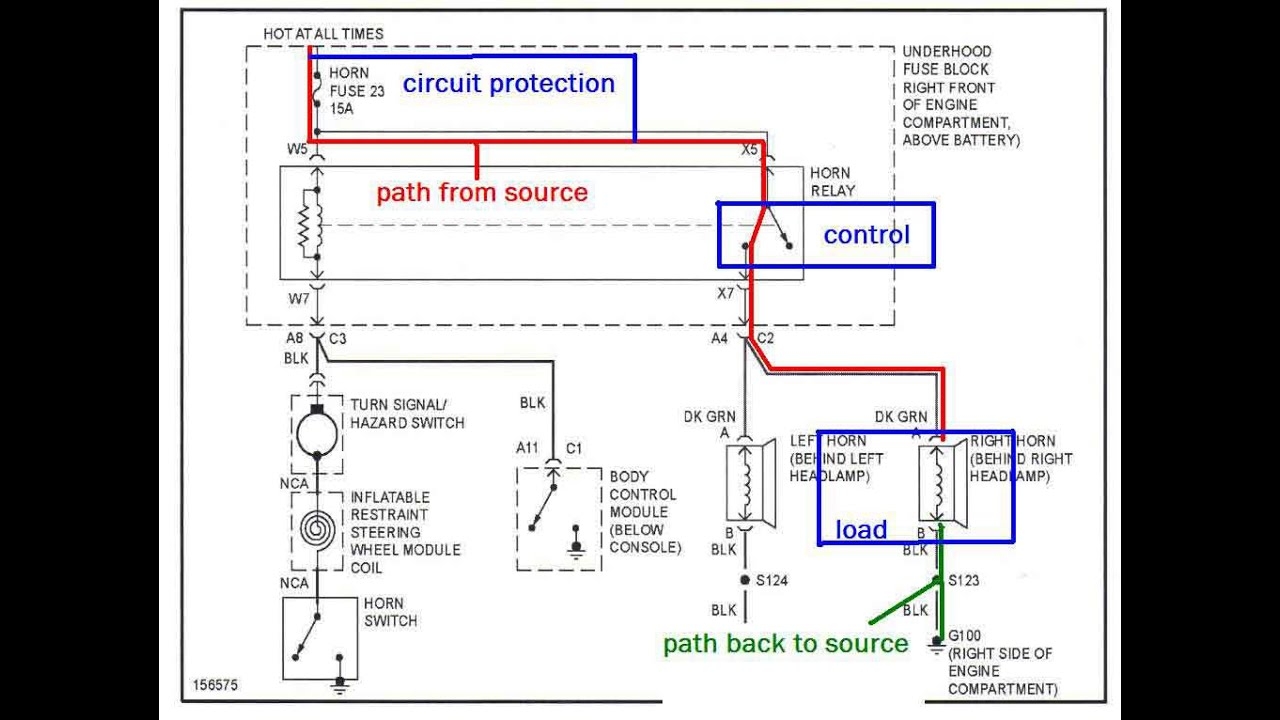

3. Follow the flow of electricity: Electrical wiring diagrams show the flow of electricity through a system, from the power source to the various components. Trace the path of the electrical current through the diagram, following the lines and symbols that indicate the connections between components. This will help you understand how the system operates and where potential issues may arise.

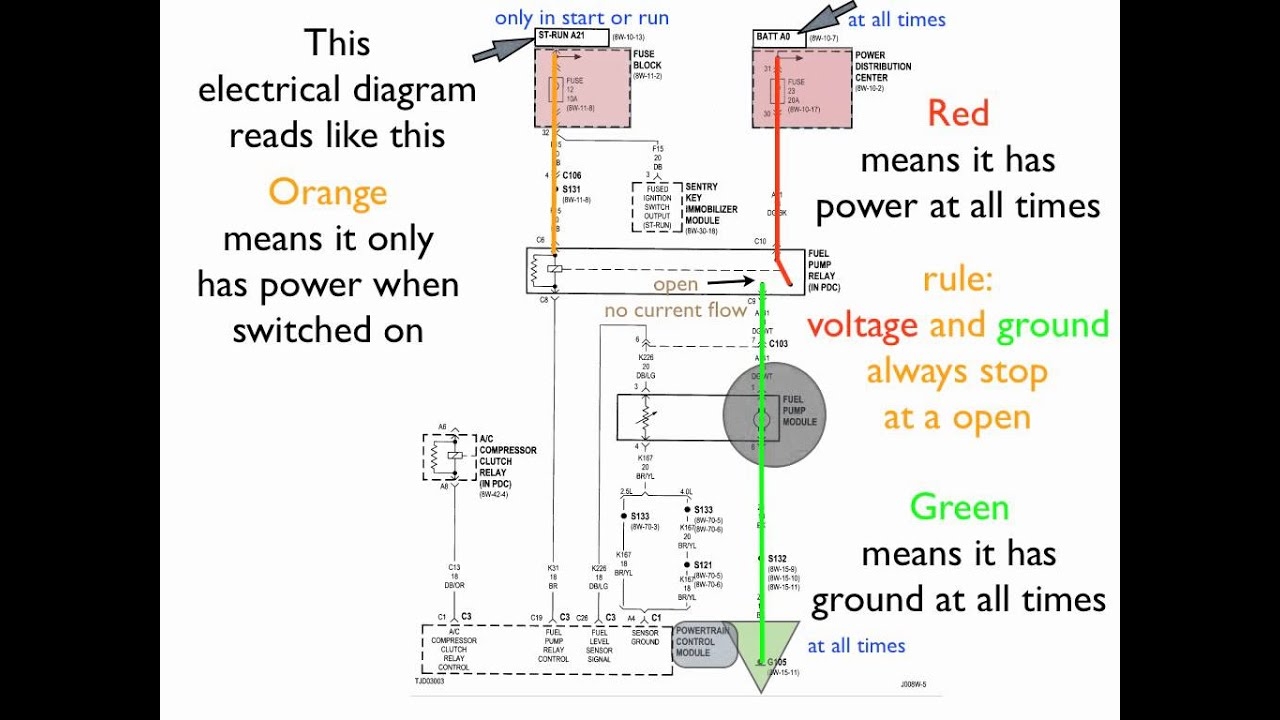

4. Pay attention to colors and labels: Some electrical wiring diagrams use color-coding to differentiate between different wires or components. Pay attention to the colors used in the diagram and refer to any labels or legends that explain their meaning. This will help you accurately interpret the connections and ensure proper wiring practices.
5. Practice and seek guidance: Reading electrical wiring diagrams takes practice and experience. Don’t hesitate to seek guidance from experienced electricians or technicians when interpreting complex diagrams. By practicing regularly and asking questions, you can improve your understanding of electrical systems and become more proficient at reading wiring diagrams.
By following these guidelines and practicing regularly, you can enhance your ability to read electrical wiring diagrams and troubleshoot electrical systems effectively. Remember to refer to the diagram’s legend, seek guidance when needed, and approach each diagram with patience and attention to detail.
