Nest Thermostat Wiring Diagrams – Master Your Wiring Setup Better with a Clear Electrical Schematic
Nest Thermostat Wiring Diagrams
Installing a Nest thermostat can be a great way to improve the energy efficiency of your home. However, it’s important to understand how to properly wire your Nest thermostat to ensure it functions correctly. Nest provides wiring diagrams to help you navigate the installation process and make sure everything is connected properly.
Before diving into the wiring diagrams, it’s important to note that Nest thermostats are designed to work with most heating and cooling systems. However, there are some systems that may require additional accessories or professional installation. It’s always a good idea to double-check compatibility and seek help if needed.
Whether you’re involved in a DIY home upgrade or maintaining your automobile, having a easy-to-read electrical schematic is important. It helps you understand how circuit elements are linked and ensures a secure, efficient setup.
Whether you’re a startup founder, administrator, or independent contractor, using apayroll printable helps ensure compliance with regulations. Simply get the template, print it, and fill it out by hand or edit it digitally before printing.
A electrical schematic visually represents electrical circuits, showing the direction of power and how different components like controls, plugs, protective devices, and terminals are linked. This makes it easier to identify problems, make upgrades, or install new systems without guesswork.
Nest Thermostat Wiring Diagrams
Many resources offer free or tailored wiring diagrams templates for automobiles, household electronics, LED setups, and more. These diagrams are particularly useful for DIY enthusiasts, electricians, and engineers who need trustworthy references.
By using a proper Nest Thermostat Wiring Diagrams, you reduce the risk of errors, save time, and ensure all electrical work is in compliance. Don’t start your next project blindly—search for a professional wiring diagrams and design with clarity today!
Download and Print Nest Thermostat Wiring Diagrams
DIAGRAM Heat And Cooling Thermostat Wiring Diagrams For Two 3 Nest

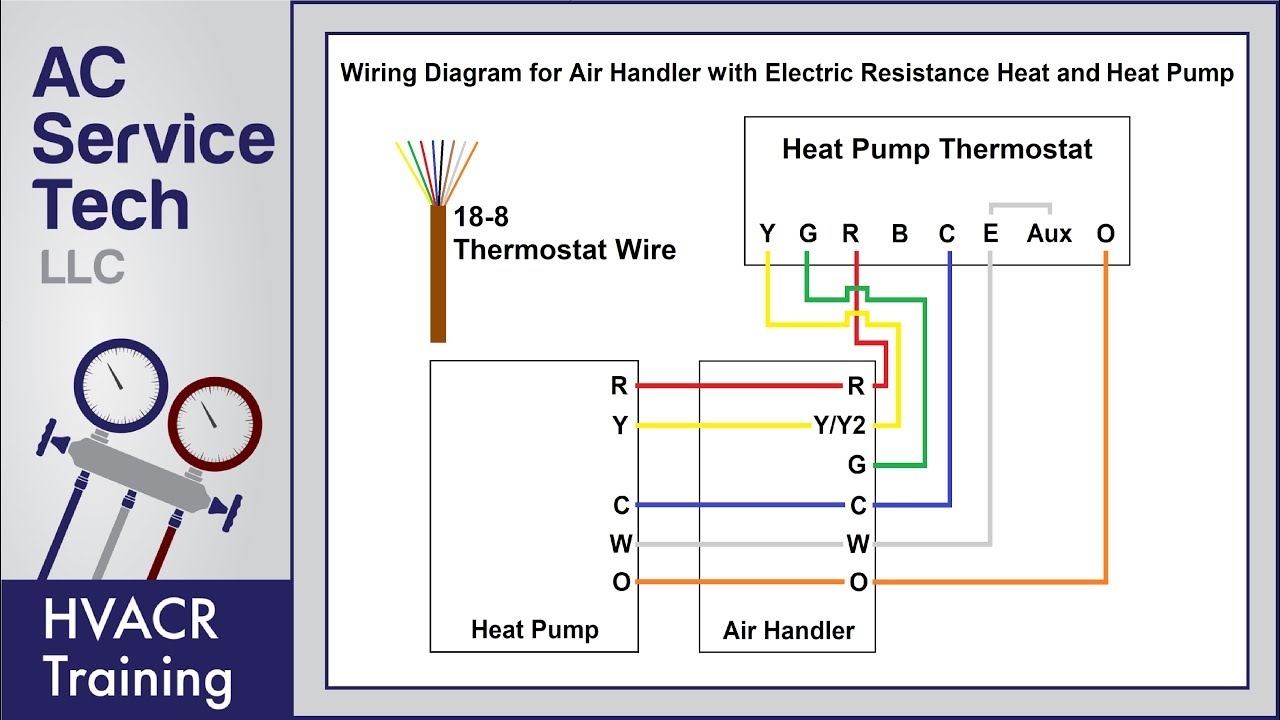

DIAGRAM Nest Thermostat Wiring Diagram Heat Pump MYDIAGRAM ONLINE
Wiring Diagrams For Nest Thermostat
Wiring Diagrams For Nest Thermostat
Wiring Diagram Nest Thermostat Nest Thermostat Wiring Diagram 2 Wire
Nest Thermostat Wiring Diagrams

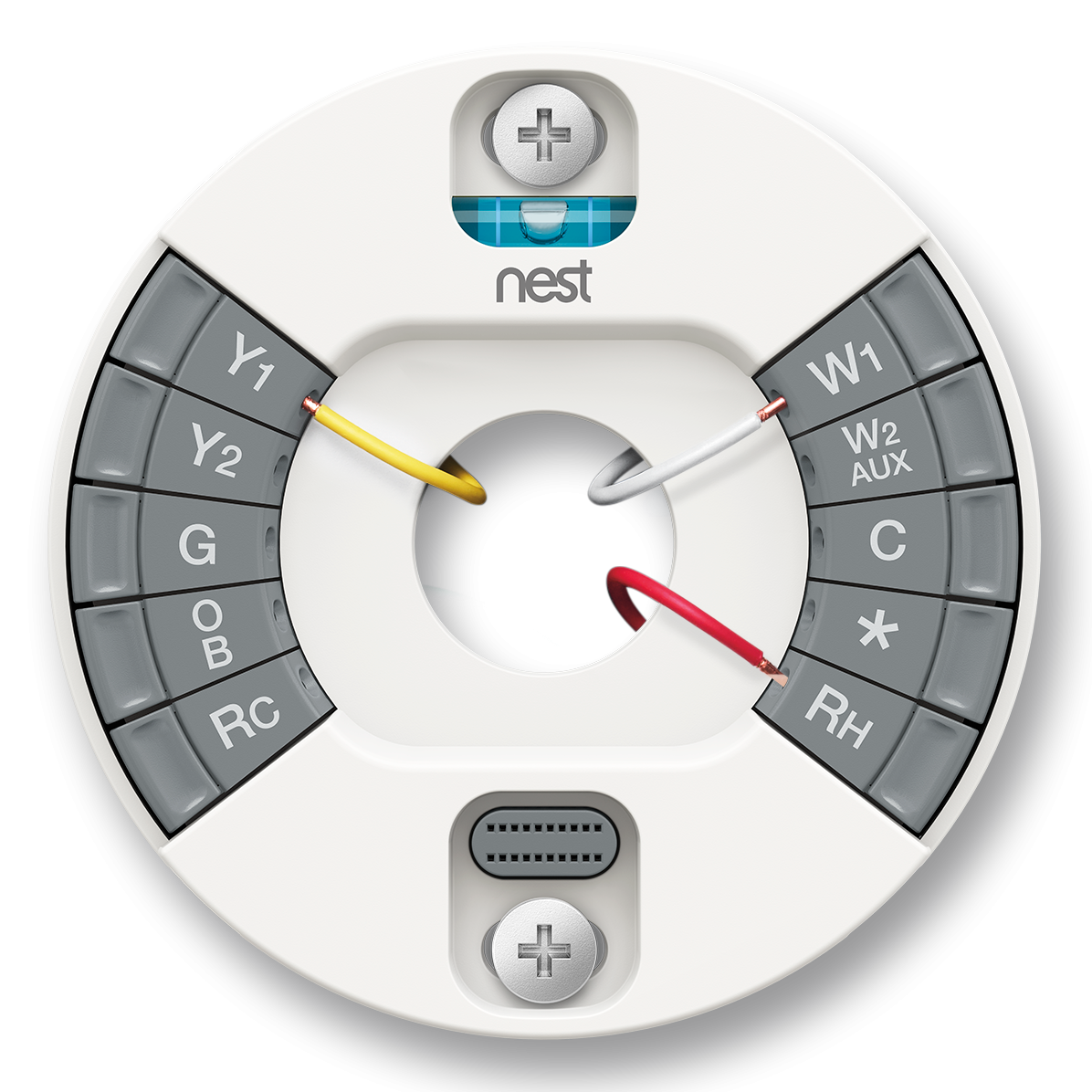

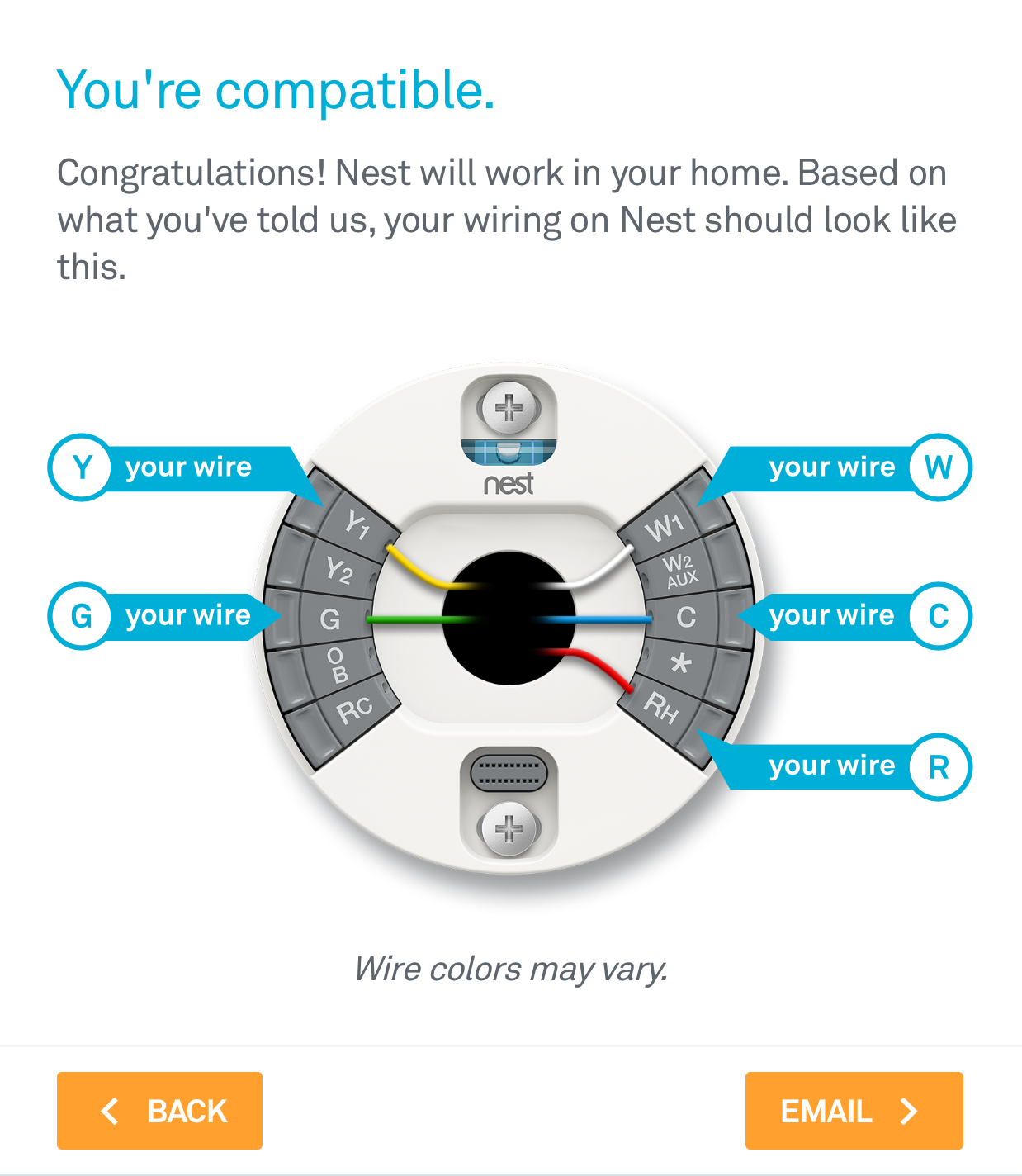

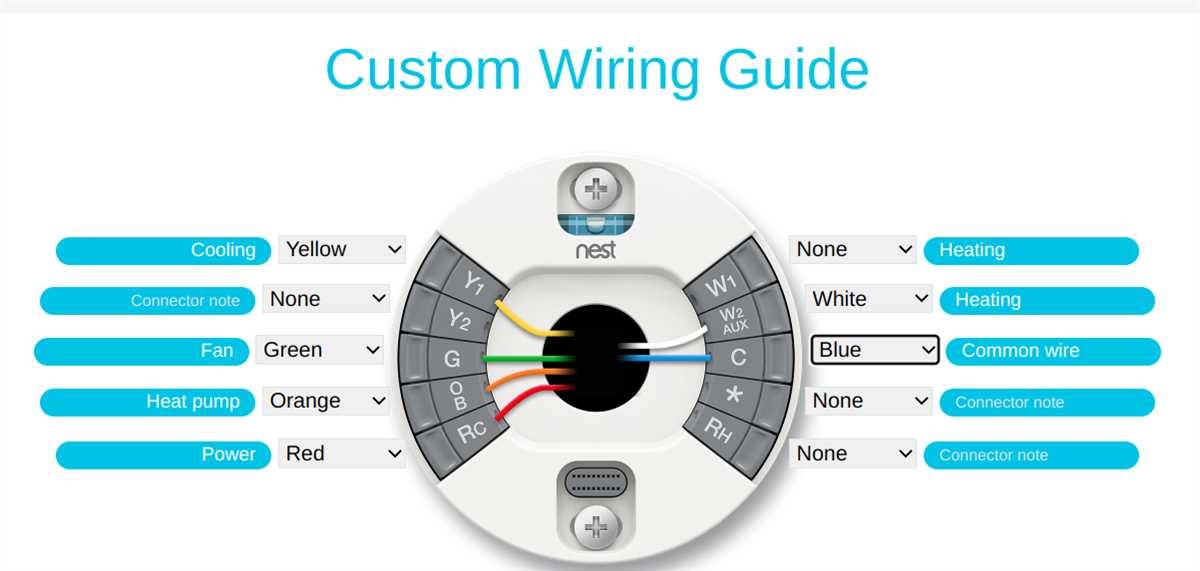

Nest provides detailed wiring diagrams for different types of heating and cooling systems. The diagrams typically include labels for each wire, making it easier to match them to the corresponding terminals on your Nest thermostat. It’s important to follow the wiring diagram specific to your system to ensure everything is connected correctly.

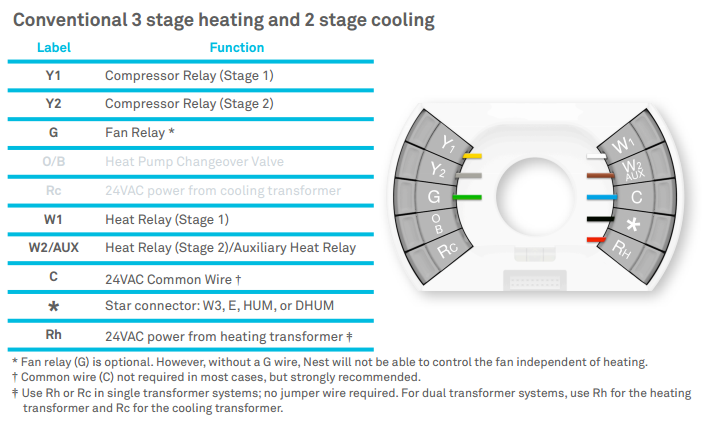

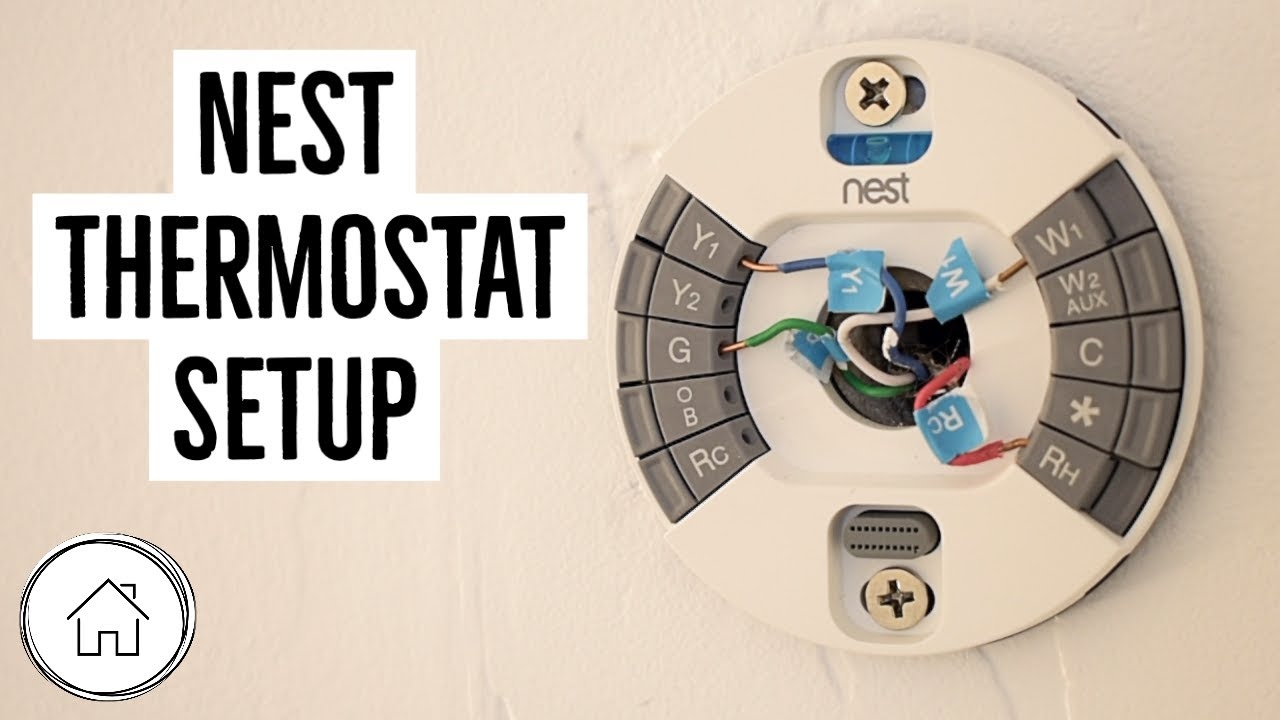

Common wires you may encounter in a Nest thermostat wiring diagram include the Rh, Rc, W, Y, G, and C wires. The Rh and Rc wires are for power, while the W wire is for heating, the Y wire is for cooling, the G wire is for the fan, and the C wire is for common. Following the wiring diagram step by step can help you avoid any confusion during installation.
If you’re unsure about any part of the wiring process, it’s always best to consult a professional. Incorrect wiring can lead to system malfunctions or even damage, so it’s better to be safe than sorry. Nest also offers customer support to help answer any questions you may have about wiring your thermostat.
Once you have successfully wired your Nest thermostat, you can enjoy the convenience of remote temperature control and energy savings. With the right wiring and setup, your Nest thermostat can help you create a comfortable and efficient living environment.
In conclusion, understanding Nest thermostat wiring diagrams is crucial for a successful installation. By following the provided diagrams and seeking help if needed, you can ensure that your Nest thermostat is wired correctly and functioning properly. Enjoy the benefits of a smart thermostat and improved energy efficiency in your home!
