When setting up a power inverter in your RV, it is important to follow a wiring diagram to ensure the proper installation and functionality of the inverter. A power inverter is a device that converts direct current (DC) from your RV’s batteries into alternating current (AC) that can be used to power various appliances and electronics while you are off-grid. A wiring diagram will guide you on how to connect the inverter to your RV’s electrical system safely and efficiently.
Before starting the installation process, make sure to carefully read the manufacturer’s instructions that come with the power inverter. It is crucial to understand the specifications and requirements of the inverter to avoid any potential damage or safety hazards. Additionally, gather all the necessary tools and materials needed for the installation, such as wires, connectors, and fuses.
Whether you’re involved in a home improvement project or repairing your vehicle, having a easy-to-read electrical schematic is essential. It helps you visualize how electrical components are wired and ensures a risk-free, smooth setup.
Whether you’re a small business owner, HR professional, or sole proprietor, using apayroll template helps ensure proper documentation. Simply access the template, produce a hard copy, and complete it by hand or edit it digitally before printing.
A wiring diagram visually represents wiring systems, showing the flow of electricity and how different components like controls, plugs, fuses, and connectors work together. This makes it easier to identify problems, improve installations, or install new systems without confusion.
Rv Power Inverter Wiring Diagram
Many websites offer complimentary or tailored wiring diagrams templates for automobiles, home appliances, LED setups, and more. These diagrams are particularly valuable for DIY enthusiasts, electricians, and engineers who need reliable references.
By using a proper wiring diagram, you avoid faults, cut down time, and ensure all projects is done correctly. Don’t start your next project blindly—search for a verified wiringdiagram and design with clarity today!
Download and Print Rv Power Inverter Wiring Diagram

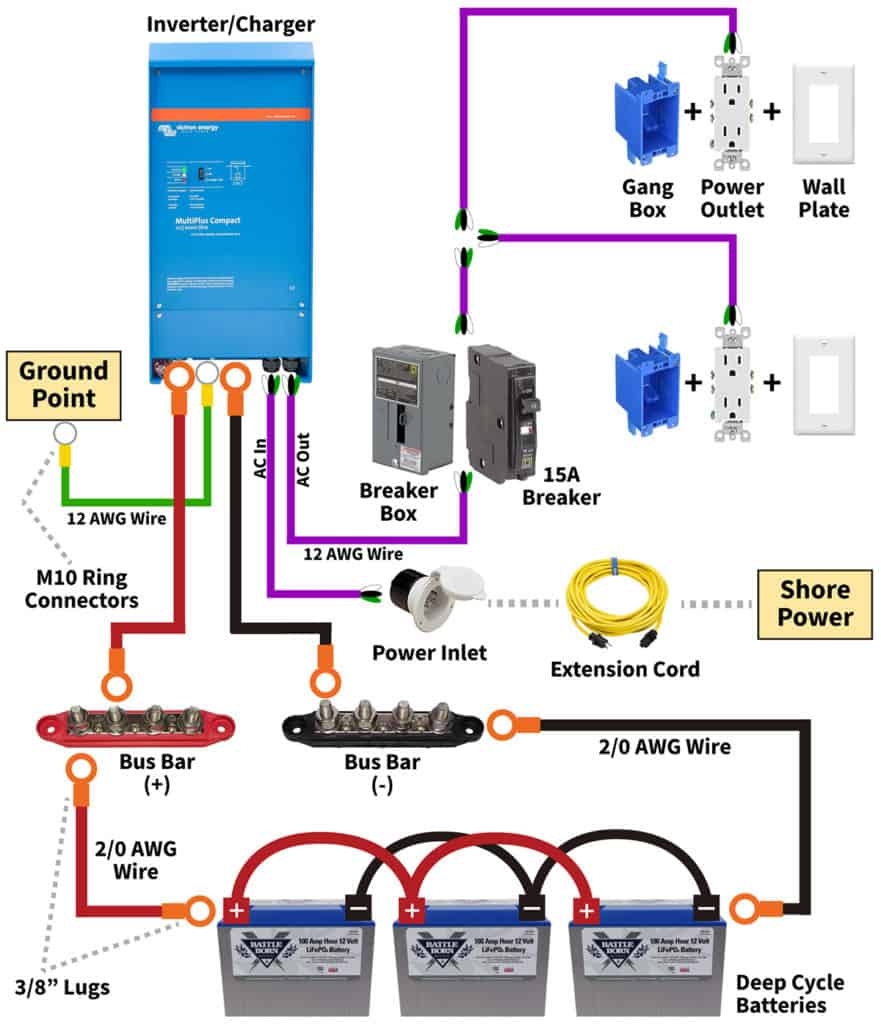

Rv Power Inverter Wiring Diagram Wiring Diagram

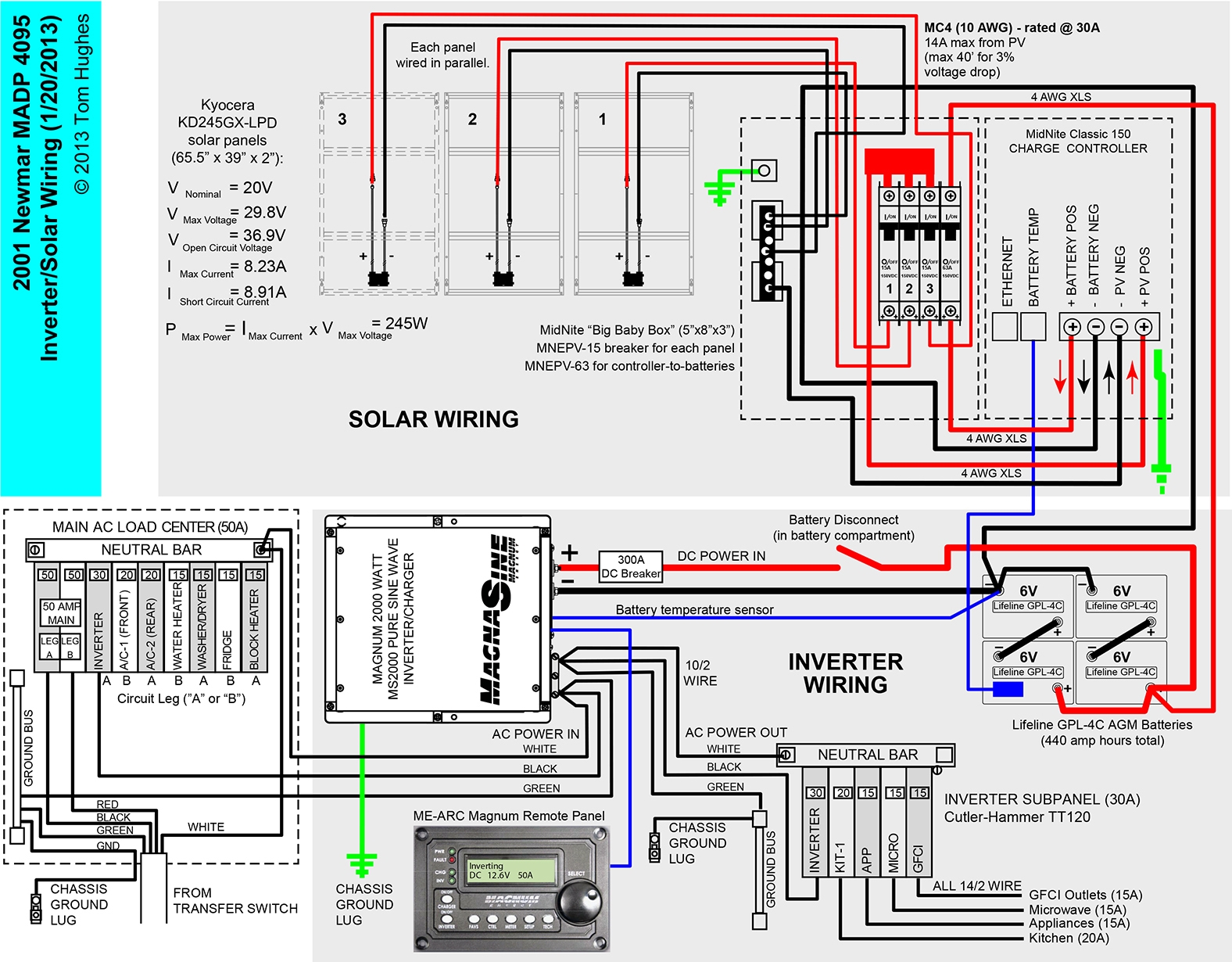

Rv Inverter Wiring Wiring Diagrams Hubs Rv Power Inverter Wiring

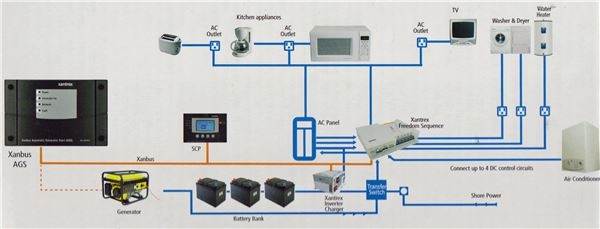

Rv Inverter Wiring Wiring Diagrams Hubs Rv Power Inverter Wiring

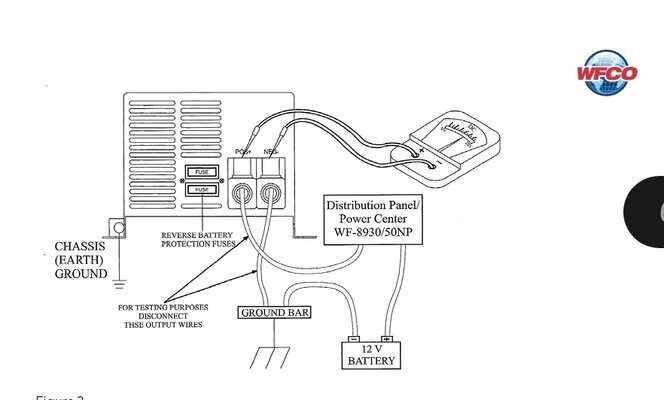

RV Power Inverter Wiring Diagram Guide
