When it comes to setting up your car audio system, understanding how to wire dual voice coil subwoofers can make a big difference in the sound quality. Dual voice coil subwoofers offer more flexibility in wiring options, allowing you to better match the impedance of your subwoofer to your amplifier for optimal performance.
By utilizing a dual voice coil subwoofer, you can wire it in different configurations to achieve the desired impedance. This can help you get the most out of your subwoofer and amplifier, ensuring that you’re getting the best possible sound quality.
Whether you’re working on a house renovation or fixing your vehicle, having a clear and accurate wiring diagram is crucial. It helps you see how circuit elements are connected and ensures a secure, organized setup.
Whether you’re a small business owner, administrator, or independent contractor, using aSubwoofer Wiring Diagrams Dual Voice Coil helps ensure accurate record-keeping. Simply get the template, print it, and complete it by hand or type directly into the file before printing.
A electrical schematic visually represents electrical circuits, showing the flow of electricity and how different components like switches, outlets, fuses, and connectors interact. This makes it easier to troubleshoot issues, enhance systems, or set up circuits without trial and error.
Subwoofer Wiring Diagrams Dual Voice Coil
Many resources offer free or customizable Subwoofer Wiring Diagrams Dual Voice Coil templates for automobiles, home appliances, LED setups, and more. These diagrams are particularly useful for DIY enthusiasts, electricians, and engineers who need reliable references.
By using a proper wiringdiagram, you avoid faults, save time, and ensure all projects is in compliance. Don’t start your next project blindly—search for a trusted Subwoofer Wiring Diagrams Dual Voice Coil and work with confidence today!
Save and Print Subwoofer Wiring Diagrams Dual Voice Coil
Subwoofer Wiring Diagrams Dual Voice Coil
Dual Voice Coil Subwoofer Wiring Diagram Easy Wiring

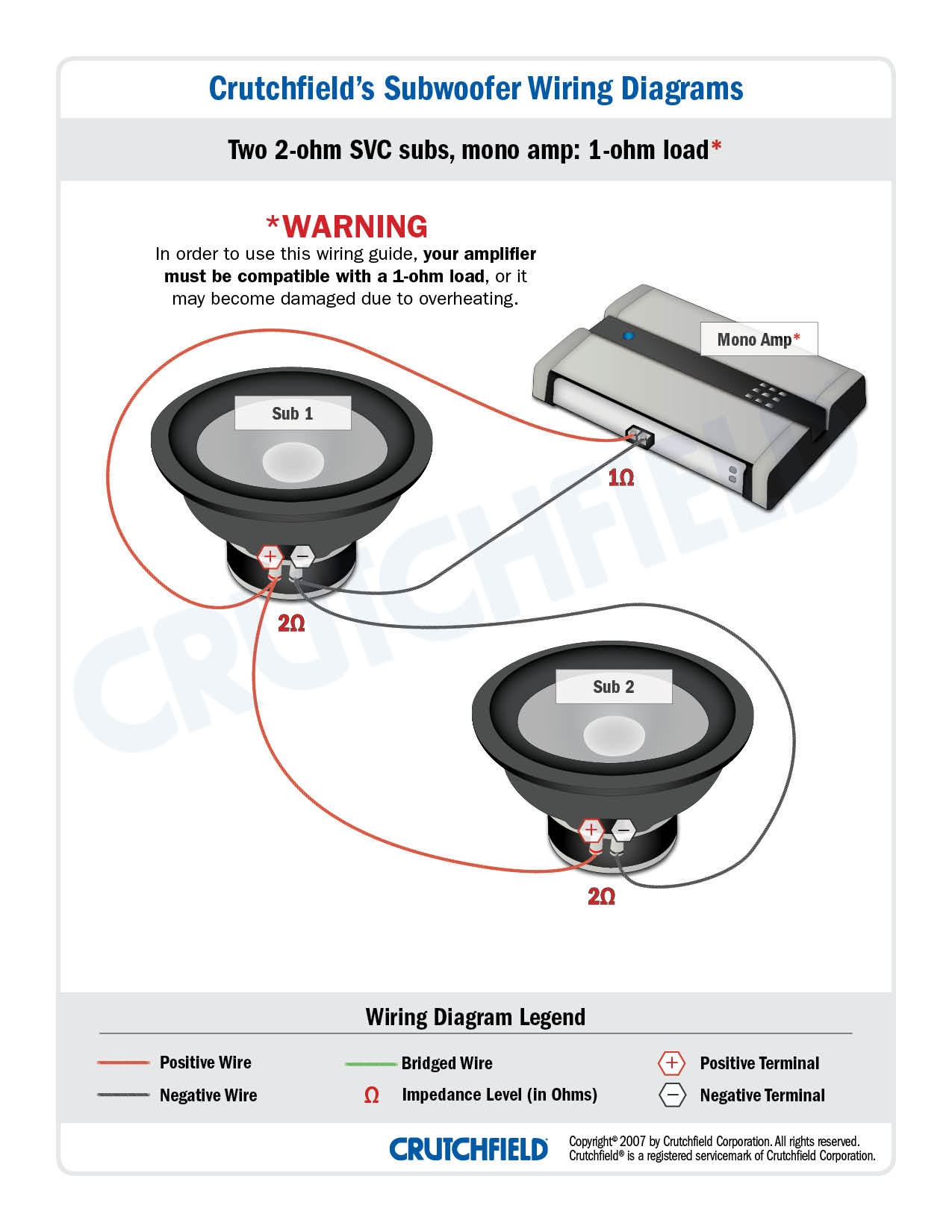

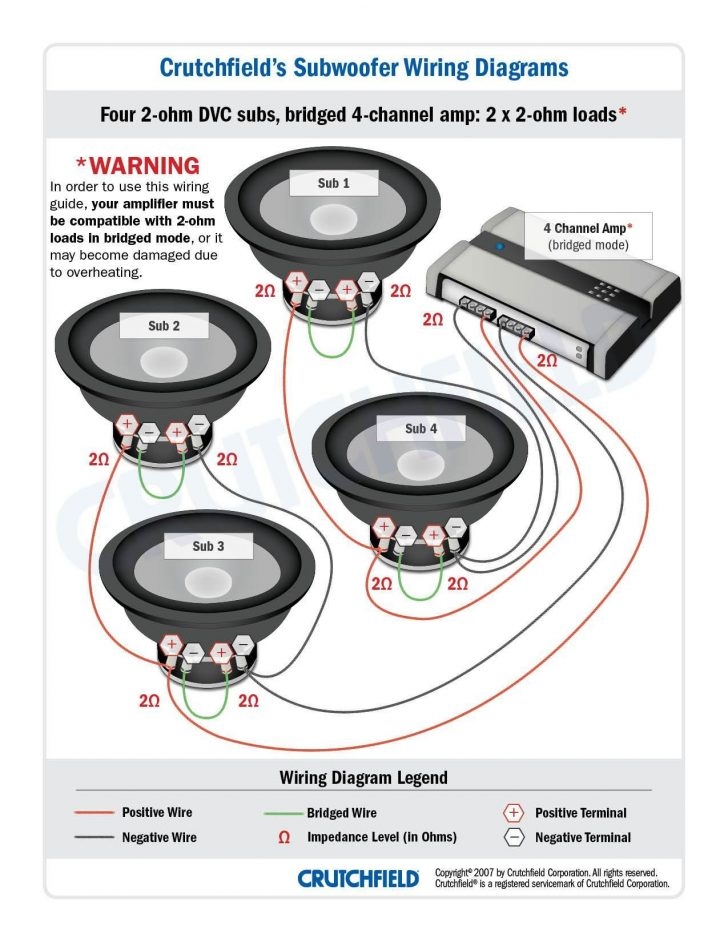

Subwoofer Wiring Diagrams Throughout 4 Ohm Dual Voice Coil Diagram 4

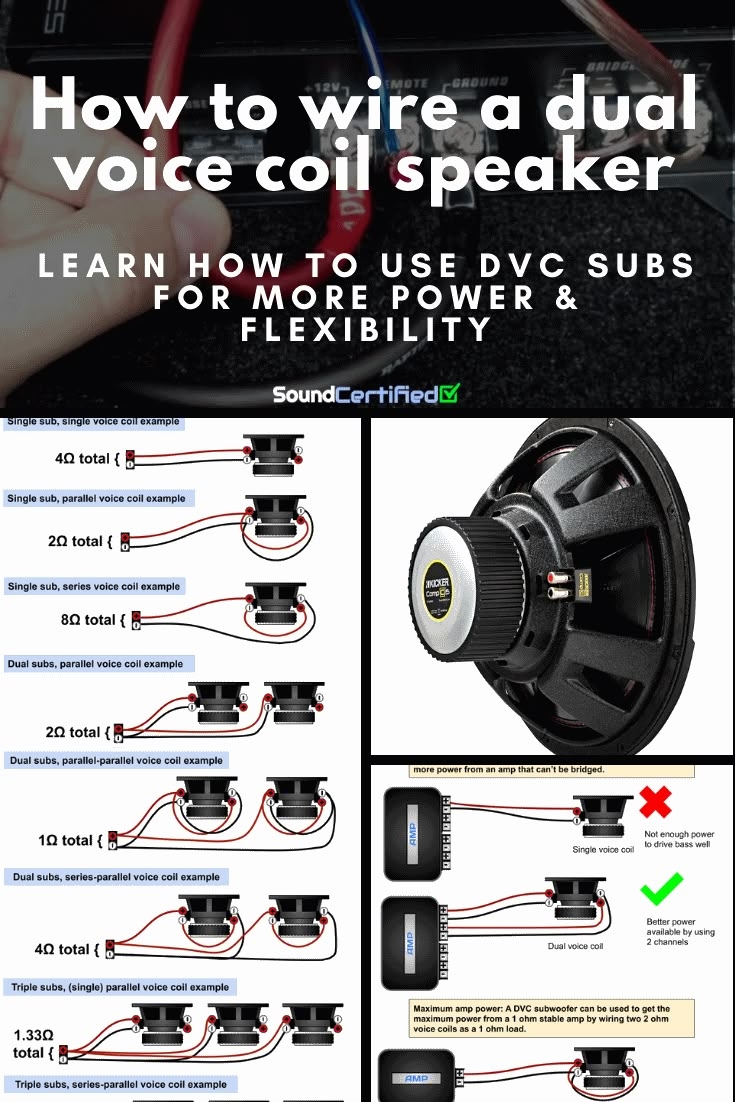

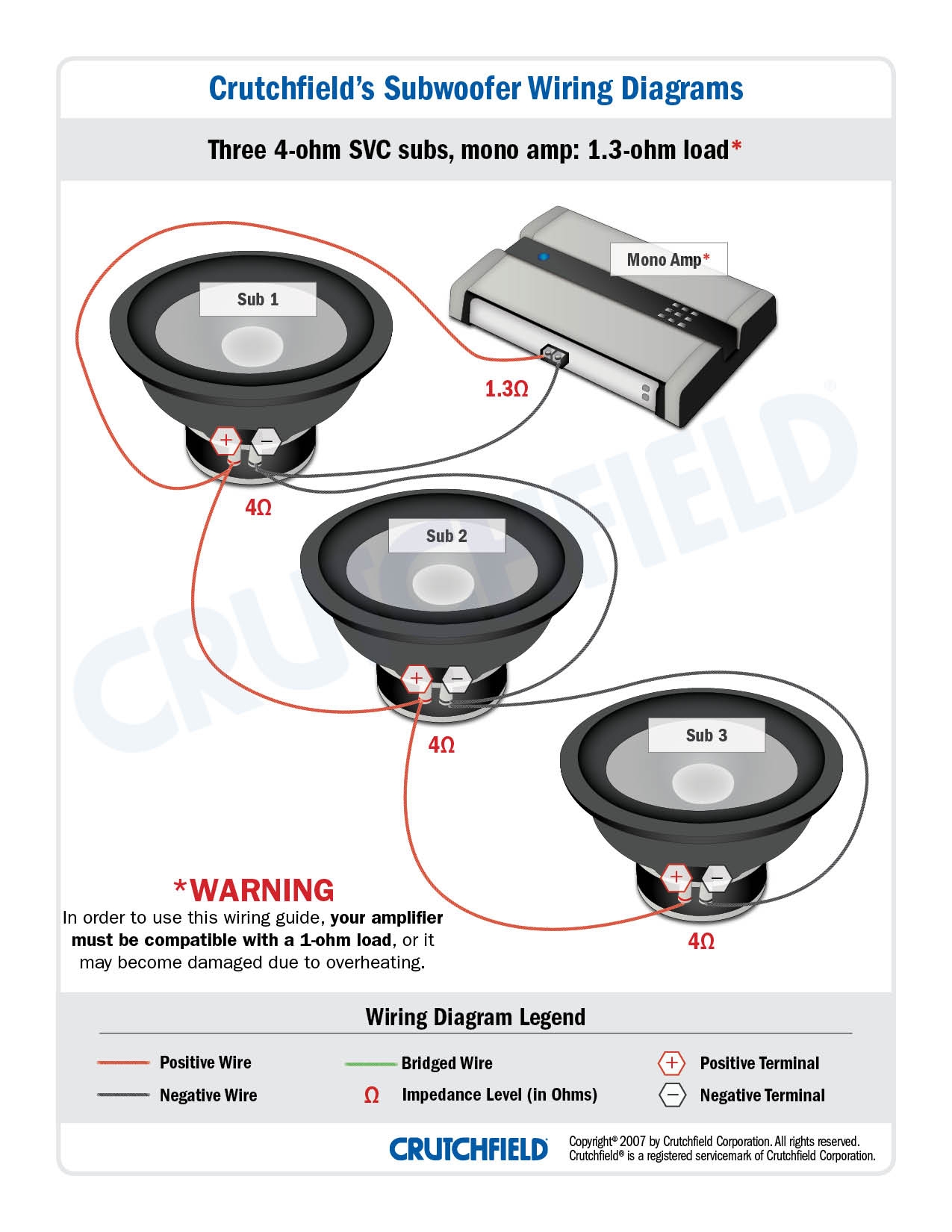

Subwoofer Wiring Diagrams How To Wire Your Subs Dual Voice Coil
Subwoofer Wiring Diagrams How To Wire Your Subs 4 Ohm Dual Voice

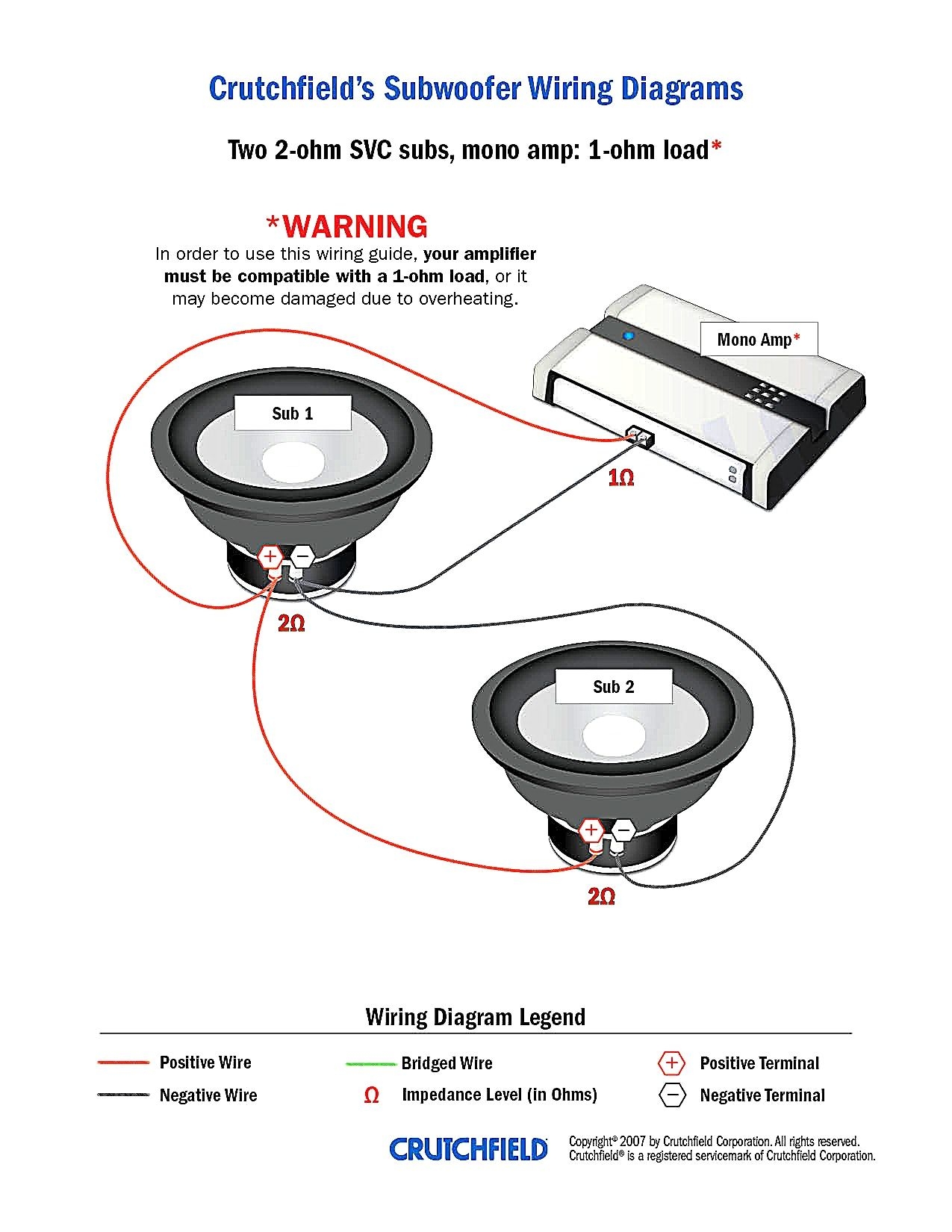

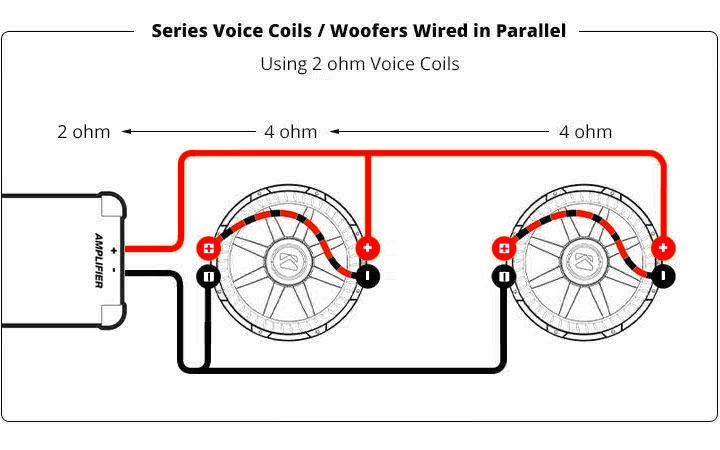

One common wiring option for dual voice coil subwoofers is to wire them in parallel. This involves connecting the positive terminals of each voice coil together, and then connecting the negative terminals together. This configuration will result in a lower overall impedance, allowing your amplifier to deliver more power to the subwoofer.
