Switched Light Wiring Diagram

Switched Light Wiring Diagram – Learn About Your Electrical System Better with a Accurate WiringDiagram

When it comes to installing or repairing a switched light in your home, having a clear understanding of the wiring diagram is crucial. The diagram helps you to identify the correct wires and connections, ensuring that the light functions properly. By following the wiring diagram accurately, you can avoid any potential safety hazards and ensure a smooth installation process.

Switched light wiring diagrams typically include detailed instructions on how to connect the wires from the light fixture to the switch, as well as any additional components such as dimmers or timers. It is important to carefully study the diagram before starting the installation to avoid any mistakes that could lead to electrical issues.

Whether you’re handling a house renovation or fixing your car, having a easy-to-read electrical schematic is crucial. It helps you see how electrical components are connected and ensures a safe, efficient setup.

Whether you’re a small business owner, HR professional, or sole proprietor, using aprintable payroll form helps ensure accurate record-keeping. Simply access the template, print it, and complete it by hand or edit it digitally before printing.

A electrical schematic visually represents current paths, showing the paths for current flow and how different parts like switches, plugs, fuses, and terminals work together. This makes it easier to identify problems, enhance systems, or set up circuits without trial and error.

Many websites offer complimentary or customizable electrical schematic templates for vehicles, household electronics, LED setups, and more. These diagrams are particularly helpful for hobbyists, electricians, and engineers who need reliable references.

By using a proper wiringdiagram, you minimize mistakes, save time, and ensure all electrical work is done correctly. Don’t start your next electrical task blindly—search for a professional Switched Light Wiring Diagram and design with clarity today!

Quickly Access and Print Switched Light Wiring Diagram

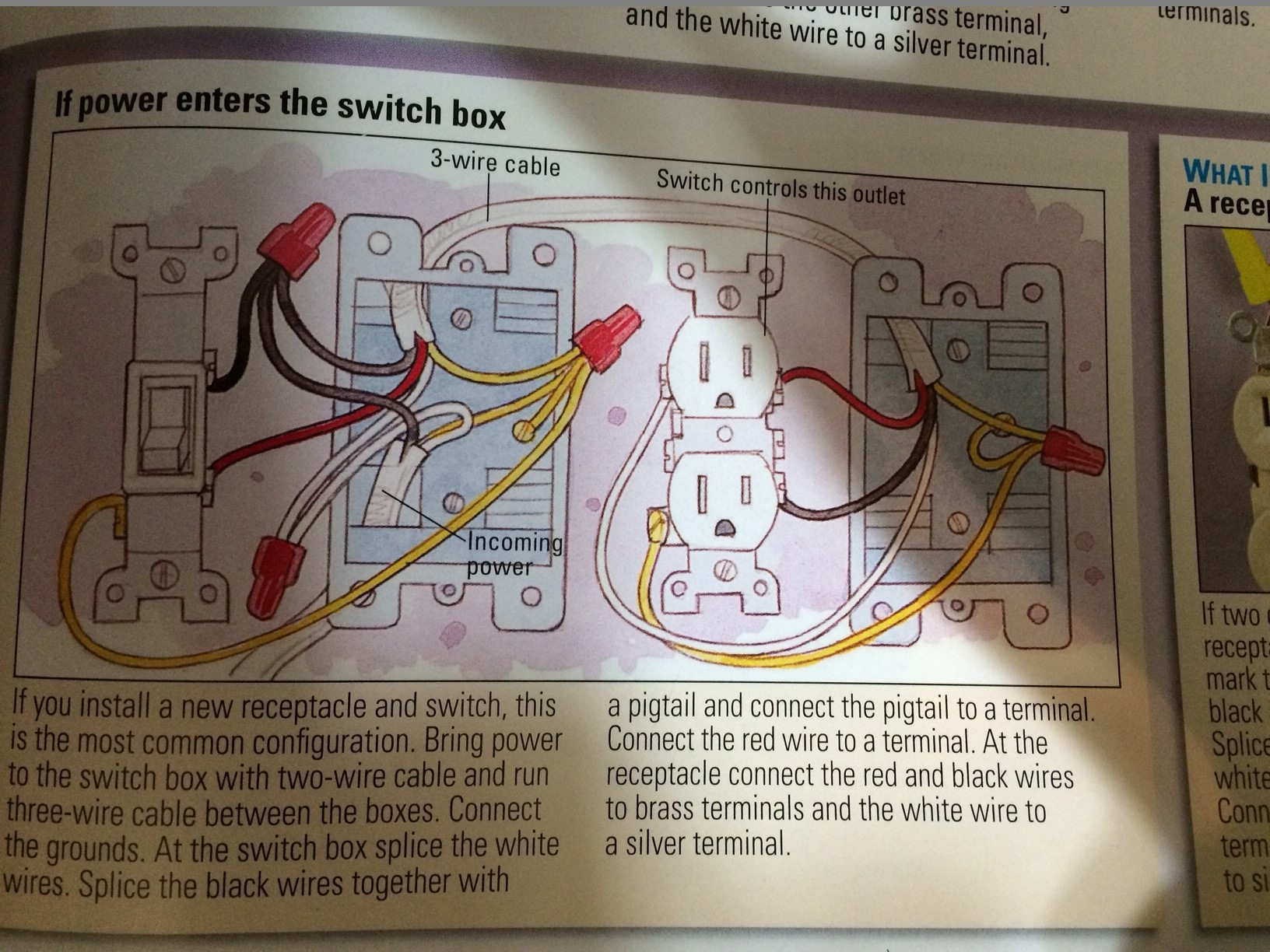

Wiring A Switched Outlet Diagram

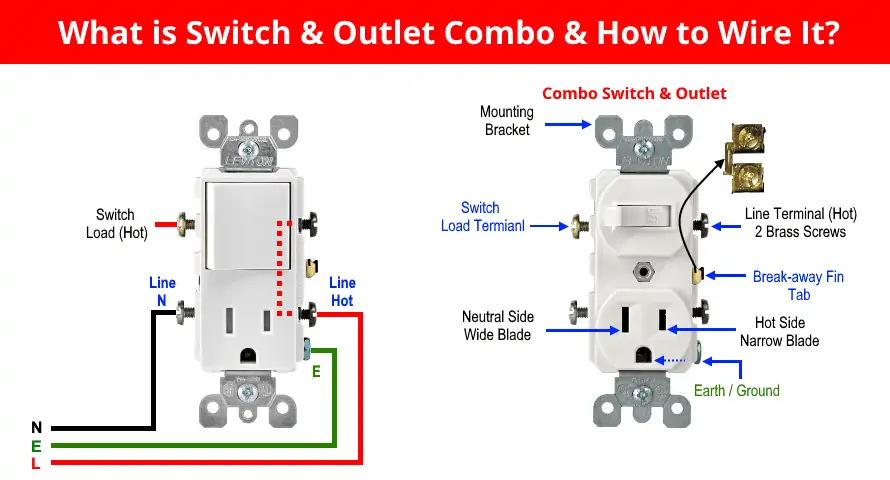

Wiring Diagram For A Switched Receptacle

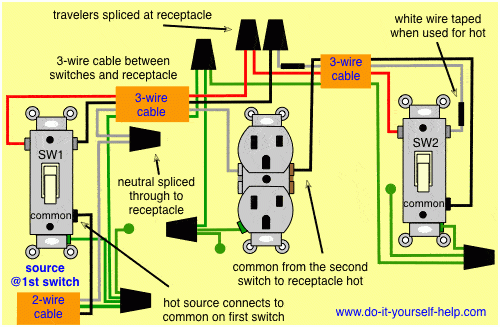

3 Way Switched Outlet Wiring Diagram

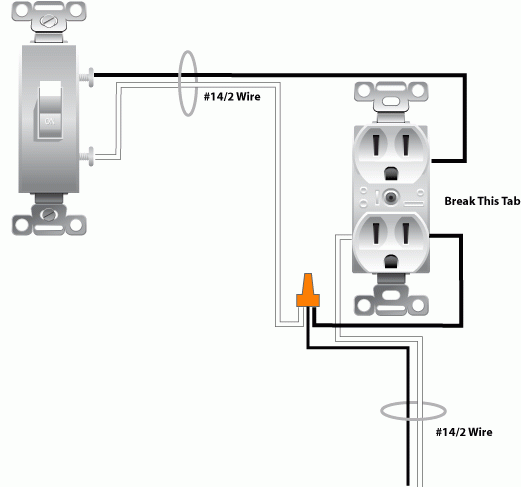

Wiring A Switched Outlet Wiring Diagram Power To Receptacle

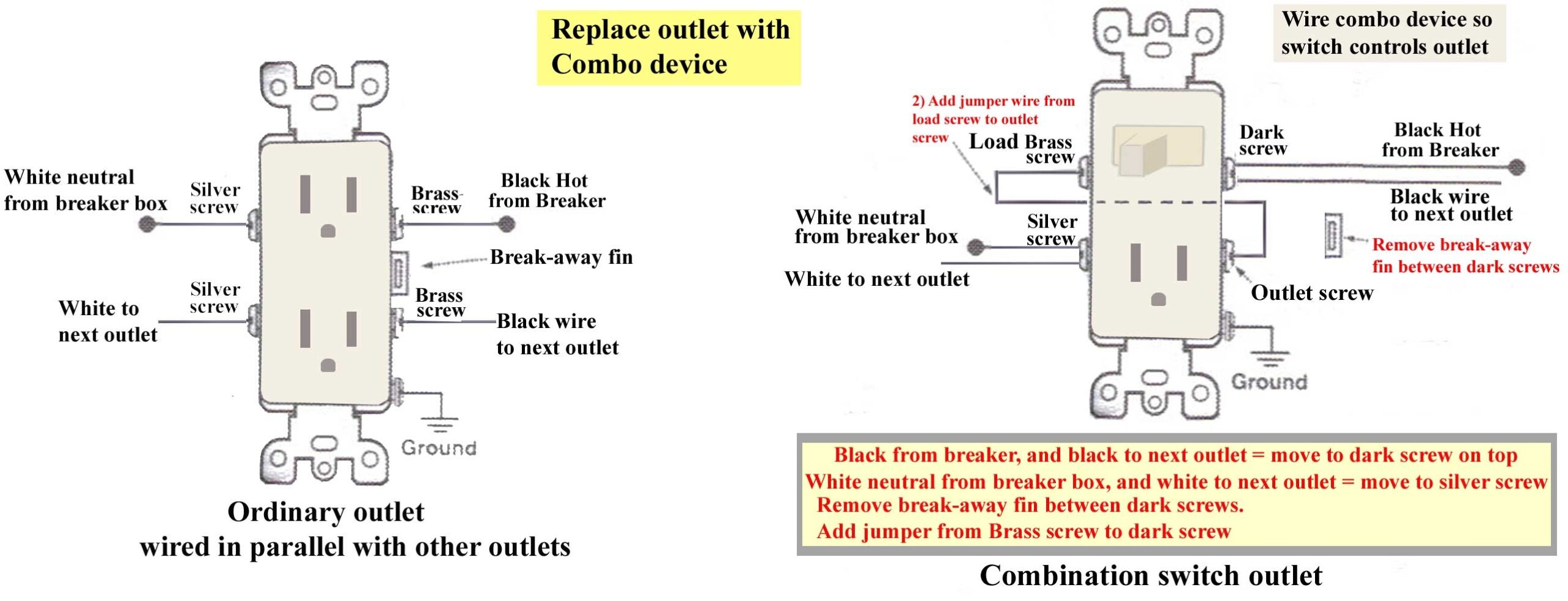

How To Wire Combination Switch Outlet Switched Outlet Wiring Diagram

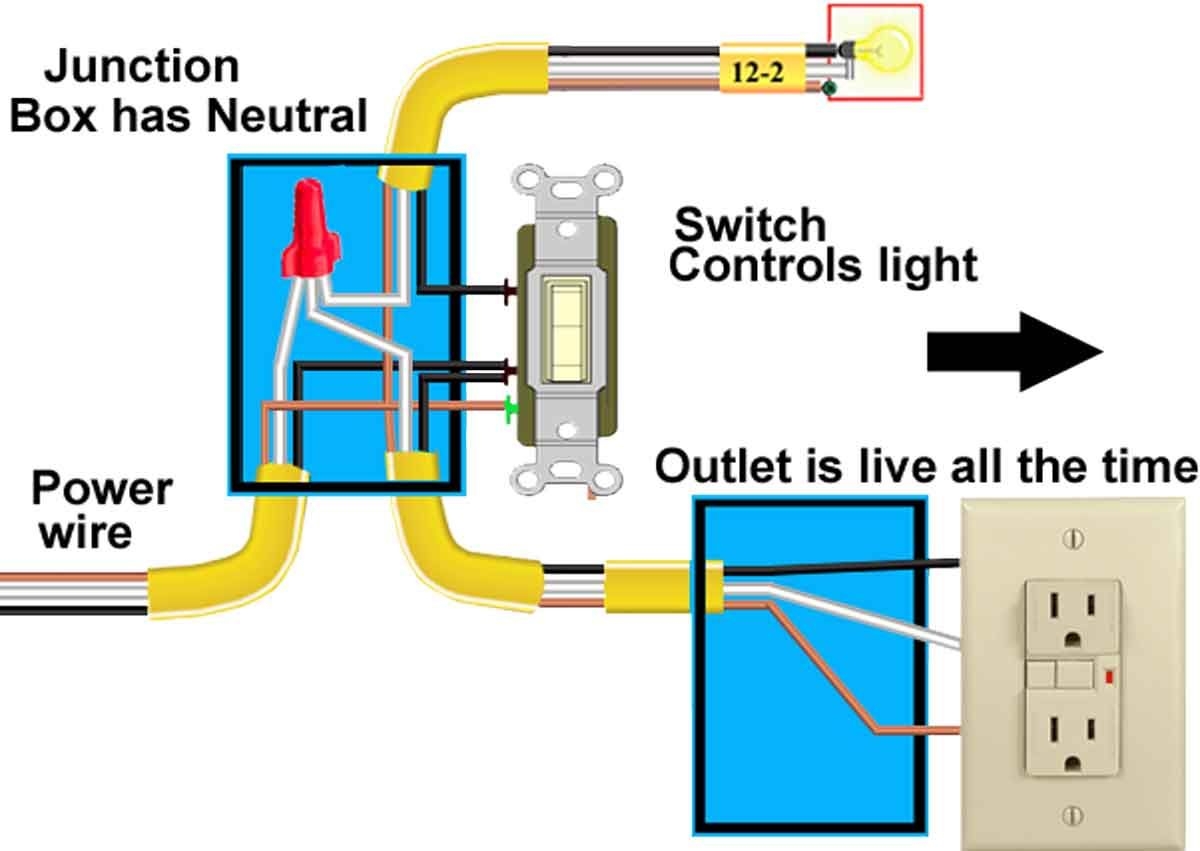

One common type of switched light wiring diagram is the single pole switch diagram. This diagram shows the connection between a single switch and a light fixture. The hot wire from the power source is connected to the switch, and another wire runs from the switch to the light fixture. When the switch is turned on, it allows electricity to flow to the light, illuminating it.

Another type of switched light wiring diagram is the three-way switch diagram, which is used when you want to control a single light fixture from two different switches. This diagram shows how to connect two switches to the light fixture, allowing you to turn the light on or off from either switch. It is important to follow the diagram carefully to ensure that the switches are connected correctly.

Some switched light wiring diagrams also include instructions on how to install additional components such as dimmers or timers. These components can help you to customize the lighting in your home and create the desired ambiance. By following the wiring diagram for these components, you can easily install them and ensure that they work properly.

In conclusion, understanding the switched light wiring diagram is essential for a successful installation or repair of a light fixture in your home. By following the diagram accurately and paying attention to the details, you can ensure that the light functions properly and safely. Whether you are installing a single pole switch or a three-way switch, following the wiring diagram will help you to complete the project with confidence.
