Trailer Connector Wiring Diagram

Trailer Connector Wiring Diagram – Understand Your Wiring Setup Better with a Detailed Electrical Schematic

When it comes to towing a trailer, having the proper wiring is essential for safety and functionality. A trailer connector wiring diagram is a helpful tool that shows you how to properly connect your trailer to your vehicle’s electrical system. This diagram can help you identify the correct wires and connections needed to ensure that your trailer lights, brakes, and other electrical components work correctly.

Whether you are towing a boat, camper, or utility trailer, having a clear understanding of the wiring diagram is crucial. By following the diagram, you can avoid potential electrical issues and ensure that your trailer is properly connected to your vehicle.

Whether you’re involved in a house renovation or repairing your automobile, having a easy-to-read wiring diagrams is crucial. It helps you understand how electrical components are wired and ensures a secure, organized setup.

Whether you’re a freelancer, payroll manager, or independent contractor, using apayroll printable helps ensure accurate record-keeping. Simply get the template, print it, and fill it out by hand or edit it digitally before printing.

A electrical schematic visually represents wiring systems, showing the paths for current flow and how different components like switches, outlets, protective devices, and terminals are linked. This makes it easier to identify problems, make upgrades, or set up circuits without guesswork.

Many online platforms offer free or customizable Trailer Connector Wiring Diagram templates for vehicles, home appliances, lighting systems, and more. These diagrams are particularly valuable for hobbyists, electricians, and builders who need trustworthy references.

By using a proper Trailer Connector Wiring Diagram, you avoid faults, increase efficiency, and ensure all electrical work is up to code. Don’t start your next project blindly—search for a professional wiringdiagram and design with clarity today!

Get and Print Trailer Connector Wiring Diagram

4 Wire Flat Trailer Connector Wiring Diagram

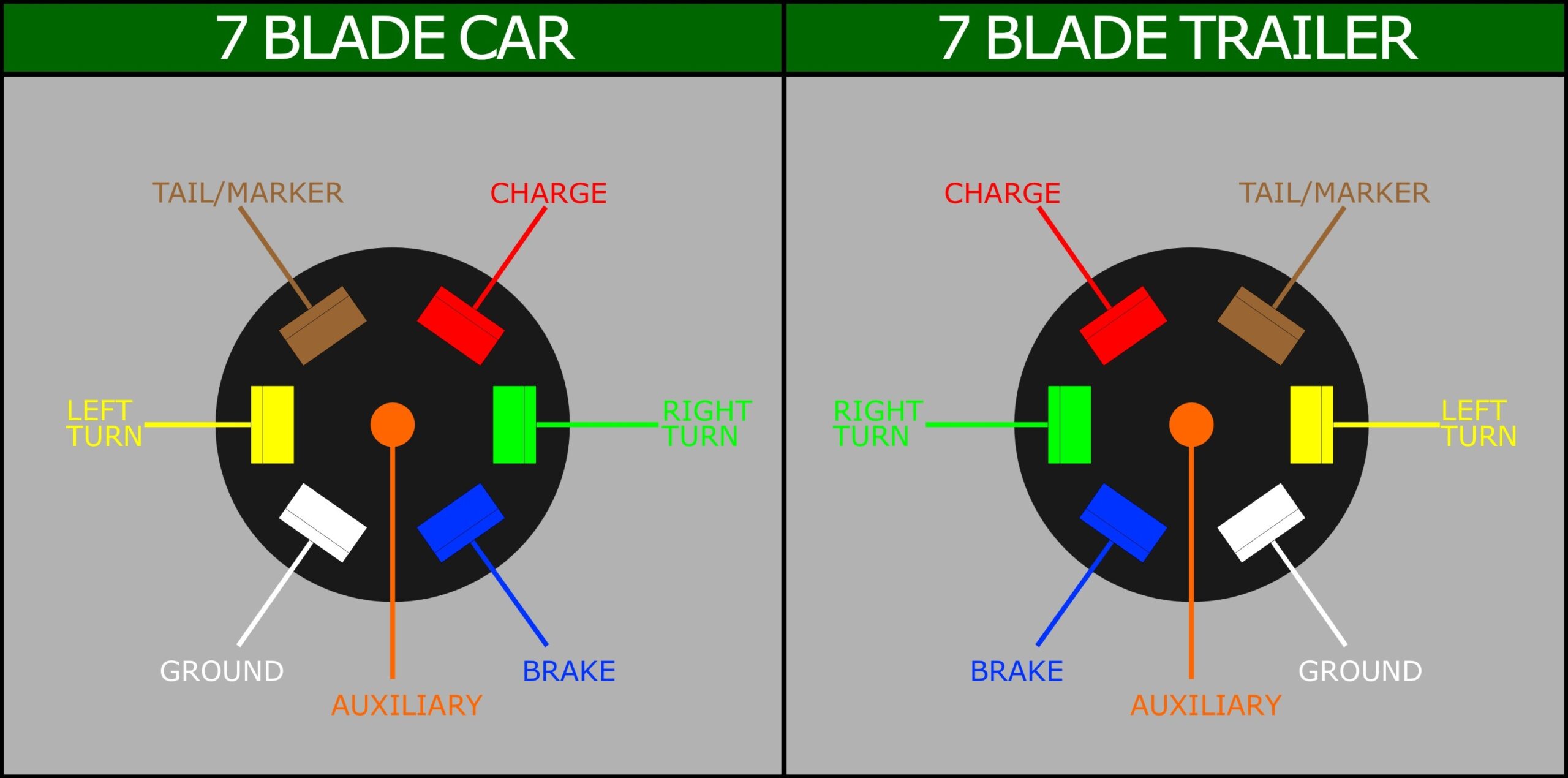

Trailer Connector Wiring Diagram 7 Way

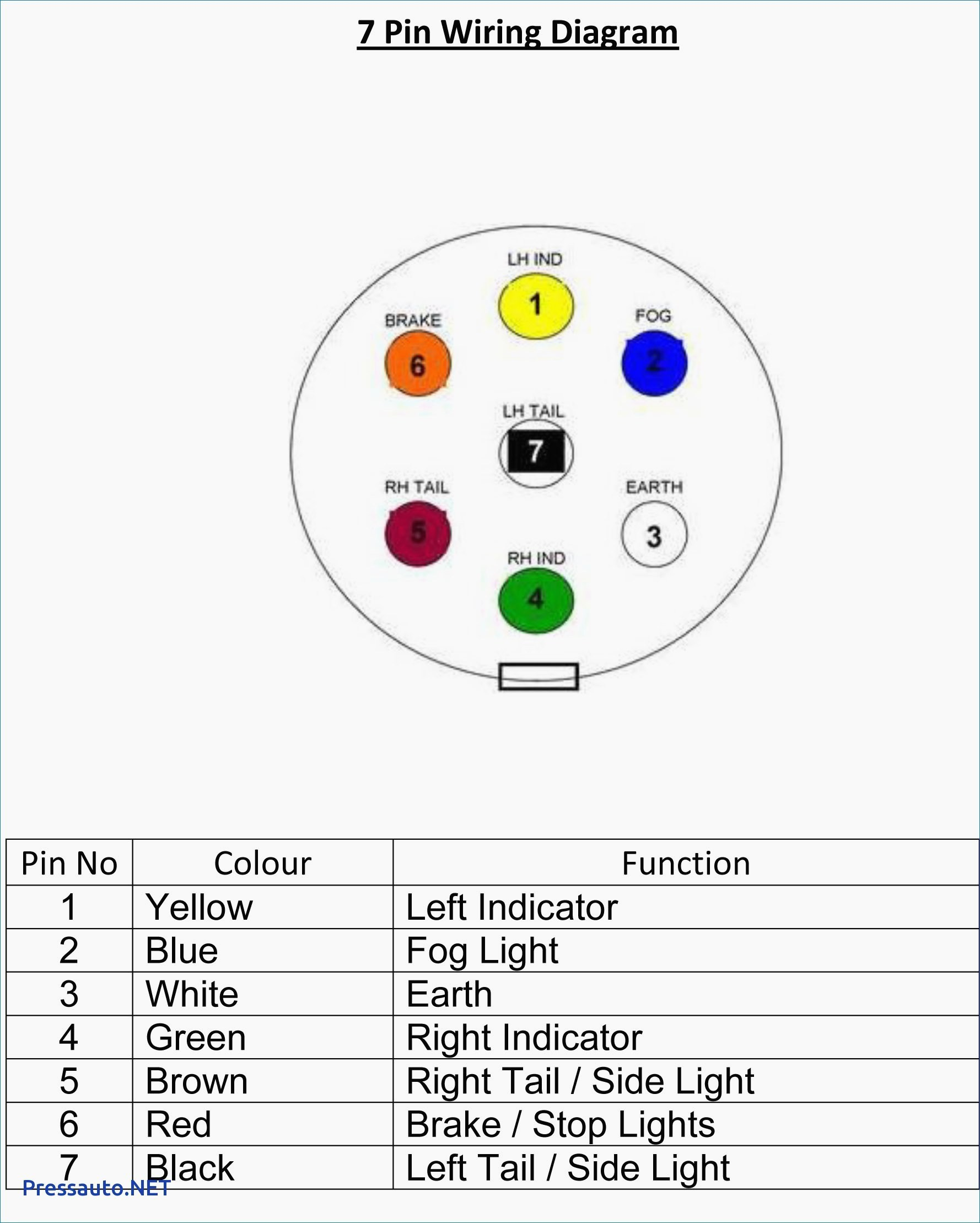

Wiring Diagram For 7 Pin Flat Trailer Plug Wiring Digital And Schematic

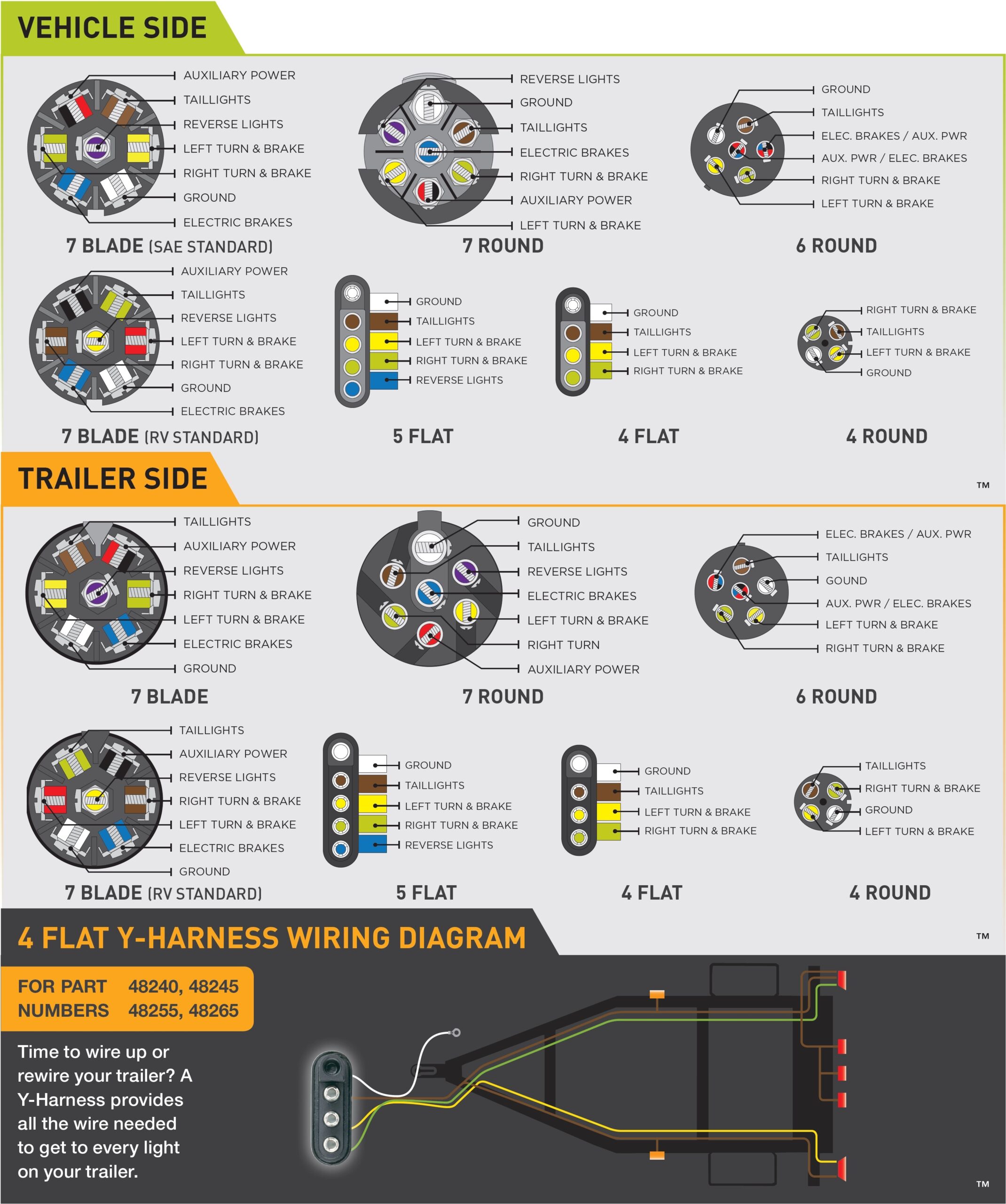

7 Pin Trailer Wiring Diagram Usa Trailer Wiring Diagram Plug Way Dump

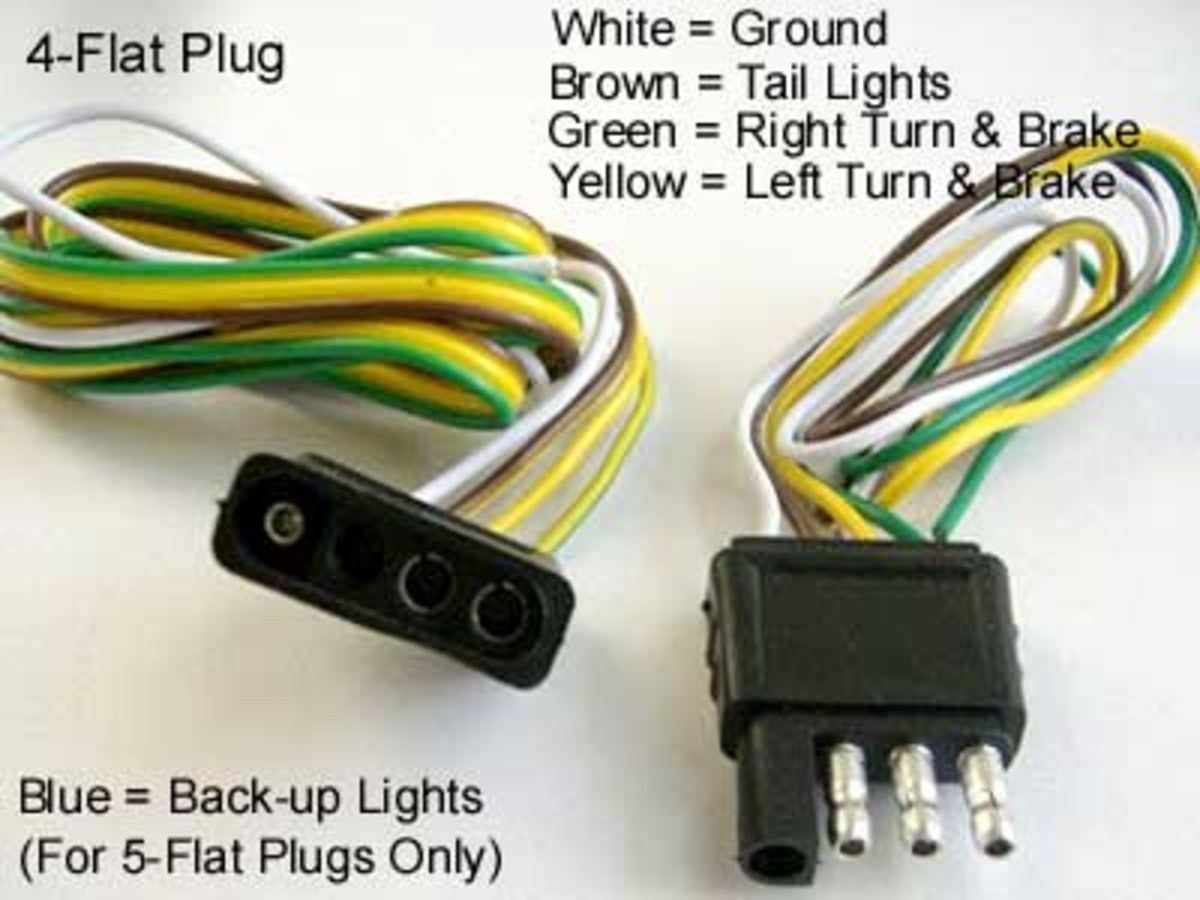

Trailer Wiring Diagram Colors Wiring Digital And Schematic

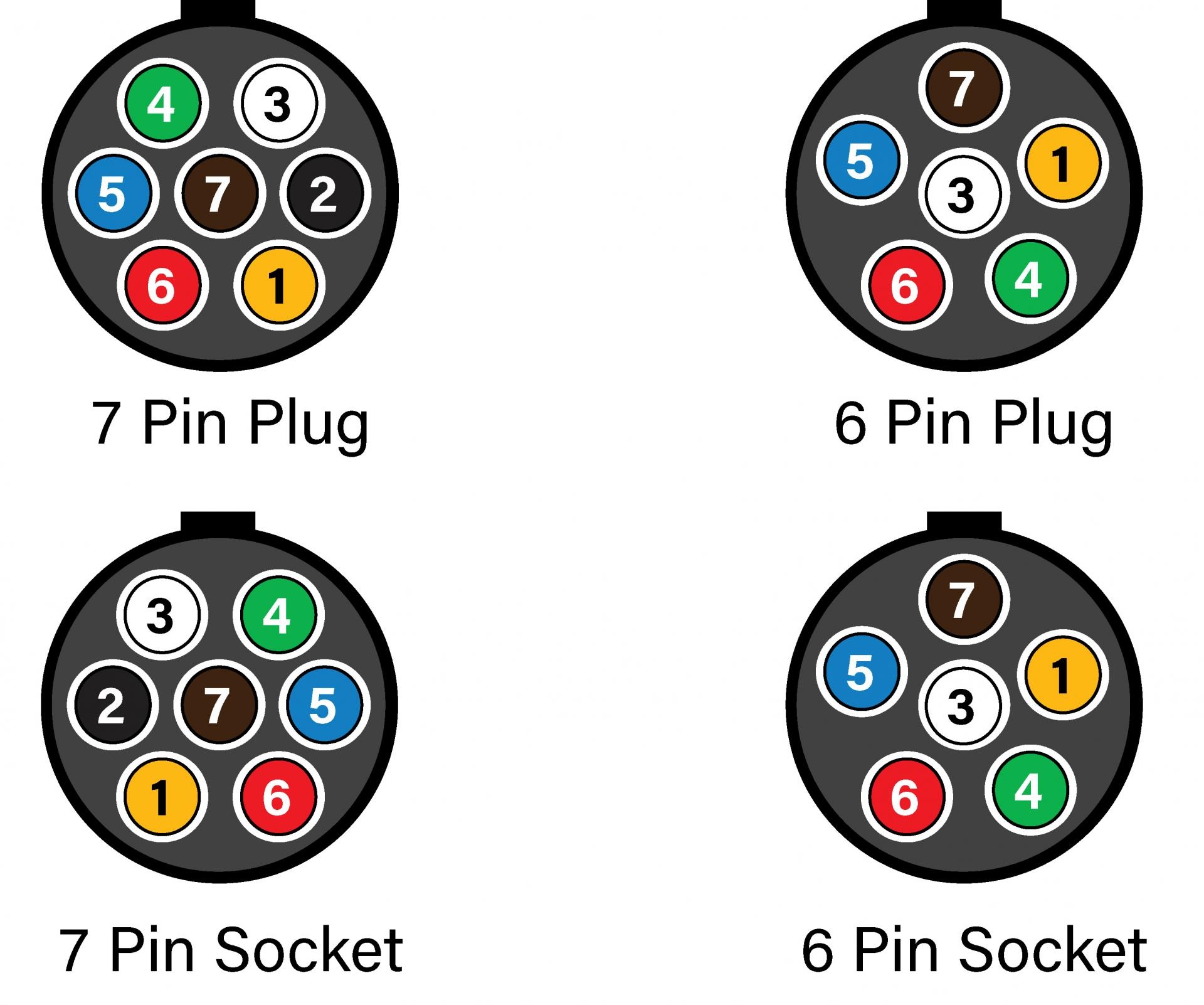

There are several types of trailer connectors, including four-pin, five-pin, six-pin, and seven-pin connectors. Each type of connector has a specific wiring diagram that outlines the color-coding of the wires and the function of each connection. It is important to match the connector on your trailer to the appropriate wiring diagram for your vehicle.

One of the most common trailer connector wiring diagrams is the seven-pin connector, which is often used for larger trailers with brakes. This diagram includes wires for the left turn signal, right turn signal, brake lights, tail lights, reverse lights, electric brakes, and a ground wire. By following the diagram, you can ensure that all of these components are properly connected to your vehicle.

Before towing a trailer, it is important to test the trailer lights and brakes to ensure that everything is working correctly. By using a trailer connector wiring diagram, you can easily troubleshoot any issues and make any necessary repairs or adjustments before hitting the road. Proper wiring is essential for safe towing and can help prevent accidents and breakdowns while on the road.

In conclusion, a trailer connector wiring diagram is a valuable resource for anyone towing a trailer. By understanding the diagram and following the correct wiring instructions, you can ensure that your trailer is properly connected to your vehicle and that all electrical components are functioning correctly. Taking the time to familiarize yourself with the wiring diagram can help you have a safe and successful towing experience.
