When it comes to installing subwoofers in a car audio system, having a proper wiring diagram is essential. Subwoofers require a different setup compared to regular speakers, so it’s important to understand the wiring process to ensure optimal performance.
Whether you’re a beginner or a seasoned car audio enthusiast, knowing how to wire subs correctly can make a significant difference in the sound quality of your system. With the right wiring diagram, you can avoid potential issues such as phase cancellation and impedance mismatch.
Whether you’re involved in a house renovation or maintaining your automobile, having a clear and accurate Wiring Diagram Subs is crucial. It helps you visualize how wires and parts are wired and ensures a safe, efficient setup.
Whether you’re a freelancer, HR professional, or independent contractor, using aprintable payroll helps ensure accurate record-keeping. Simply access the template, produce a hard copy, and fill it out by hand or type directly into the file before printing.
A wiring diagram visually represents electrical circuits, showing the paths for current flow and how different components like controls, plugs, fuses, and connectors are linked. This makes it easier to identify problems, improve installations, or set up circuits without guesswork.
Wiring Diagram Subs
Many resources offer complimentary or editable wiring diagrams templates for automobiles, home appliances, LED setups, and more. These diagrams are particularly helpful for hobbyists, technicians, and builders who need trustworthy references.
By using a proper wiring diagram, you avoid faults, increase efficiency, and ensure all electrical work is done correctly. Don’t start your next electrical task blindly—search for a verified wiring diagram and work with confidence today!
Easily Download and Print Wiring Diagram Subs

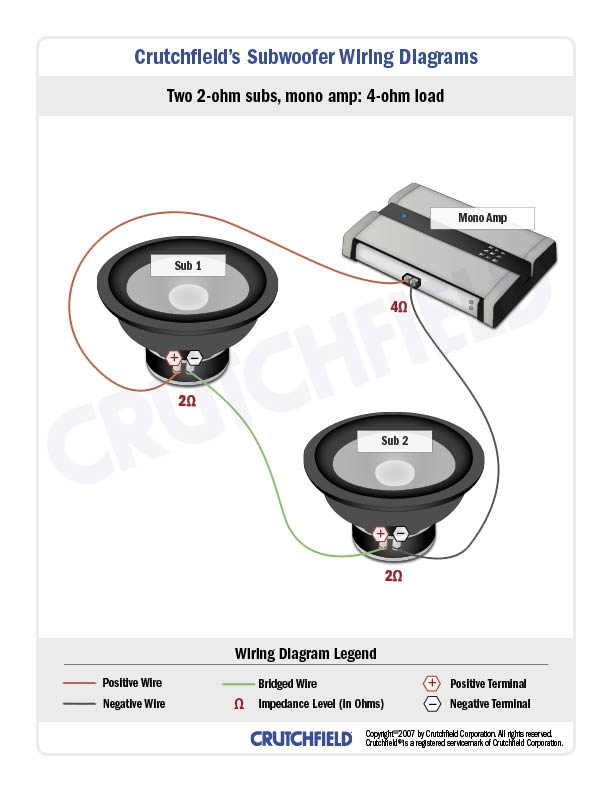

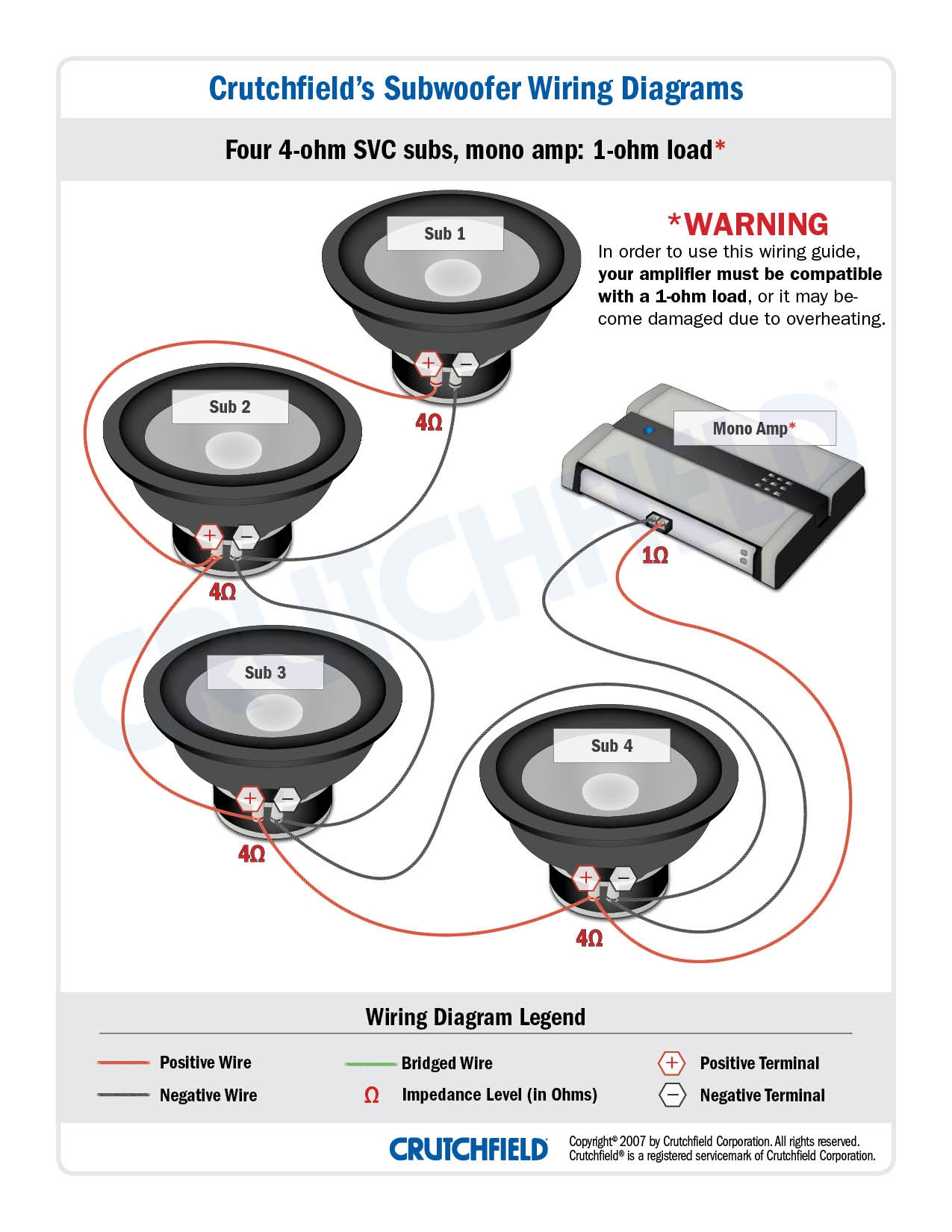

Subwoofer Wiring Diagrams How To Wire Your Subs Subwoofer Wiring
Wiring Subs In Series Vs Parallel

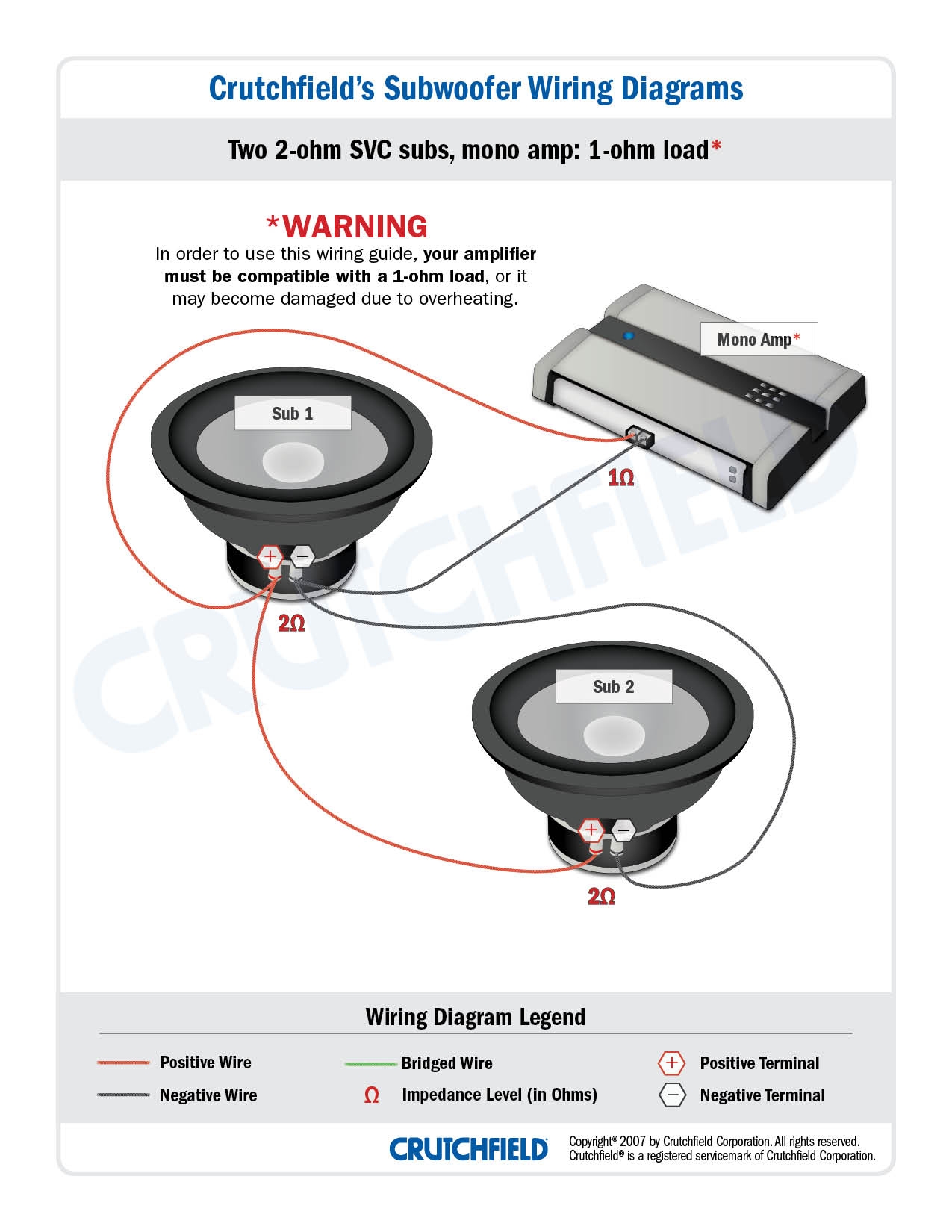

Subwoofer Wiring Diagrams How To Wire Your Subs 4 Ohm Dual Voice
Rockford Fosgate Wiring Diagram Wiring Diagram
Wiring Diagram For Two Dvc Subs Wiring Diagram
Wiring Diagram Subs
One of the most common wiring configurations for subs is the parallel wiring setup. In this setup, the positive terminals of each subwoofer are connected together, as well as the negative terminals. This results in a lower overall impedance, which can allow for more power to be delivered to the subs.
Another popular wiring option is the series wiring setup. In this configuration, the positive terminal of one subwoofer is connected to the negative terminal of the other subwoofer. This increases the overall impedance, which can be beneficial for certain amplifiers that require a higher load.
For those looking to add multiple subs to their system, a combination of parallel and series wiring may be necessary. This can allow for a balance between impedance levels and power distribution, ensuring that each subwoofer receives the appropriate amount of power.
It’s important to follow the wiring diagram for subs provided by the manufacturer of your subwoofers and amplifier. This will ensure that you’re connecting the components correctly and maximizing the performance of your system. Additionally, using quality wiring and connectors can help prevent issues such as signal loss and interference.
In conclusion, having a solid understanding of wiring diagrams for subs is crucial for achieving the best audio experience in your car. By following the recommended wiring configurations and using high-quality components, you can ensure that your subwoofers are operating at their full potential. So, before you start your installation, make sure to refer to the wiring diagram to set yourself up for success.
